LEXUS IS250 350 2 D ALE20L-AEFLXW / TOOL-ENGINE-FUEL / EXHAUST GAS RECIRCULATION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

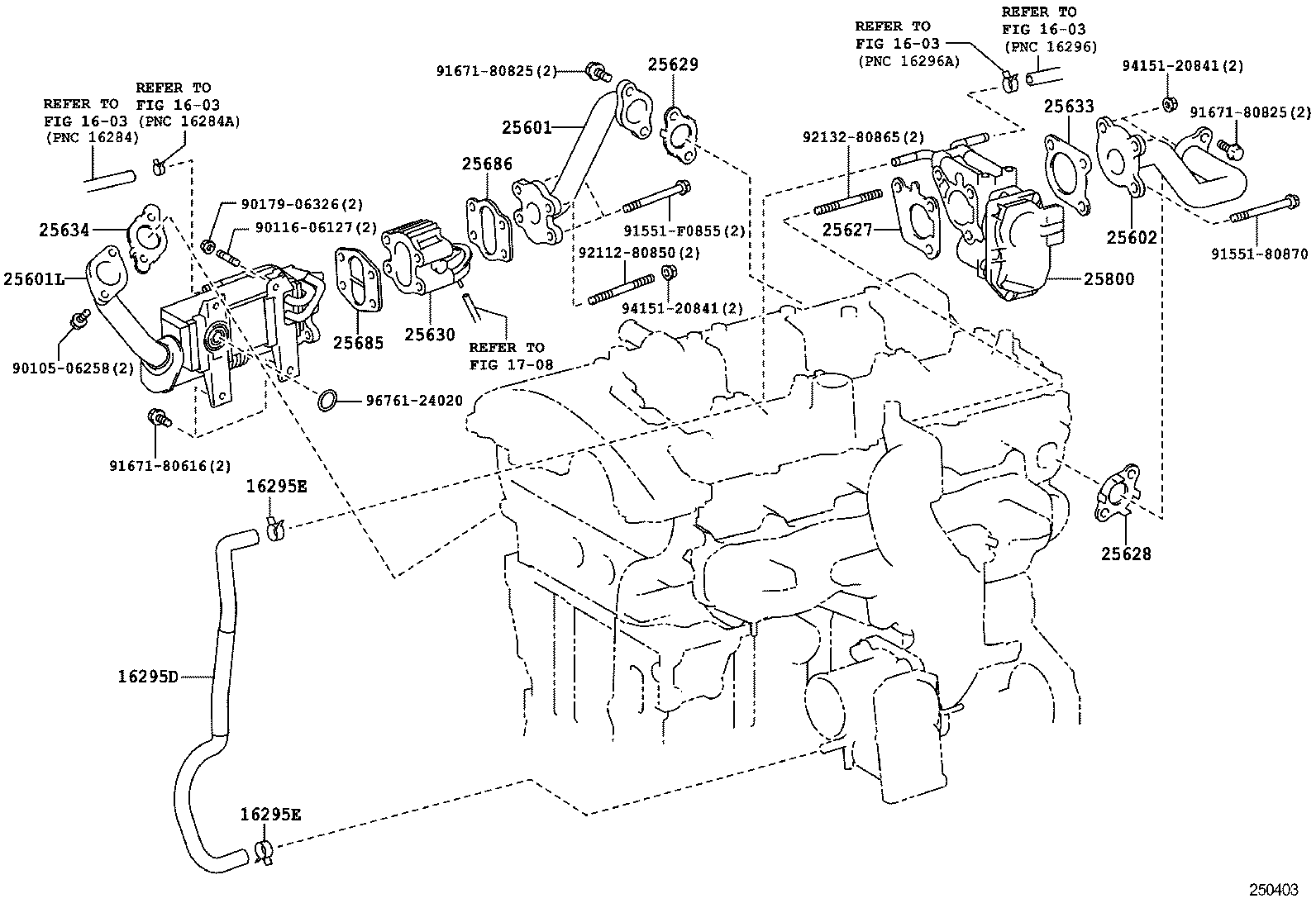

EXHAUST GAS RECIRCULATION SYSTEM

(1008- )2AD#

IS250 350 2 D | EXHAUST GAS RECIRCULATION SYSTEM ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 16295D - HOSE, WATER BY-PASS, NO.7 16295E - CLIP(FOR WATER BY-PASS HOSE NO.7) 16295E - CLIP(FOR WATER BY-PASS HOSE NO.7) ** Refer Fig 25601 - PIPE SUB-ASSY, EGR, NO.1 25601L - PIPE SUB-ASSY, EGR W/COOLER 25602 - PIPE SUB-ASSY, EGR, NO.2 25627 - GASKET, EGR VALVE 25628 - GASKET, EGR INLET 25629 - GASKET, EGR VALVE ADAPTER 25630 - VALVE ASSY, EGR, NO.2 25633 - GASKET, EGR VALVE 25634 - GASKET, EGR PIPE 25685 - GASKET, EGR COOLER, NO.1 25686 - GASKET, EGR COOLER, NO.2 25800 - VALVE ASSY, ELECTRIC EGR CONTROL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
