LEXUS RX400H MHU38L-AWXGKW / ELECTRICAL / HV INVERTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

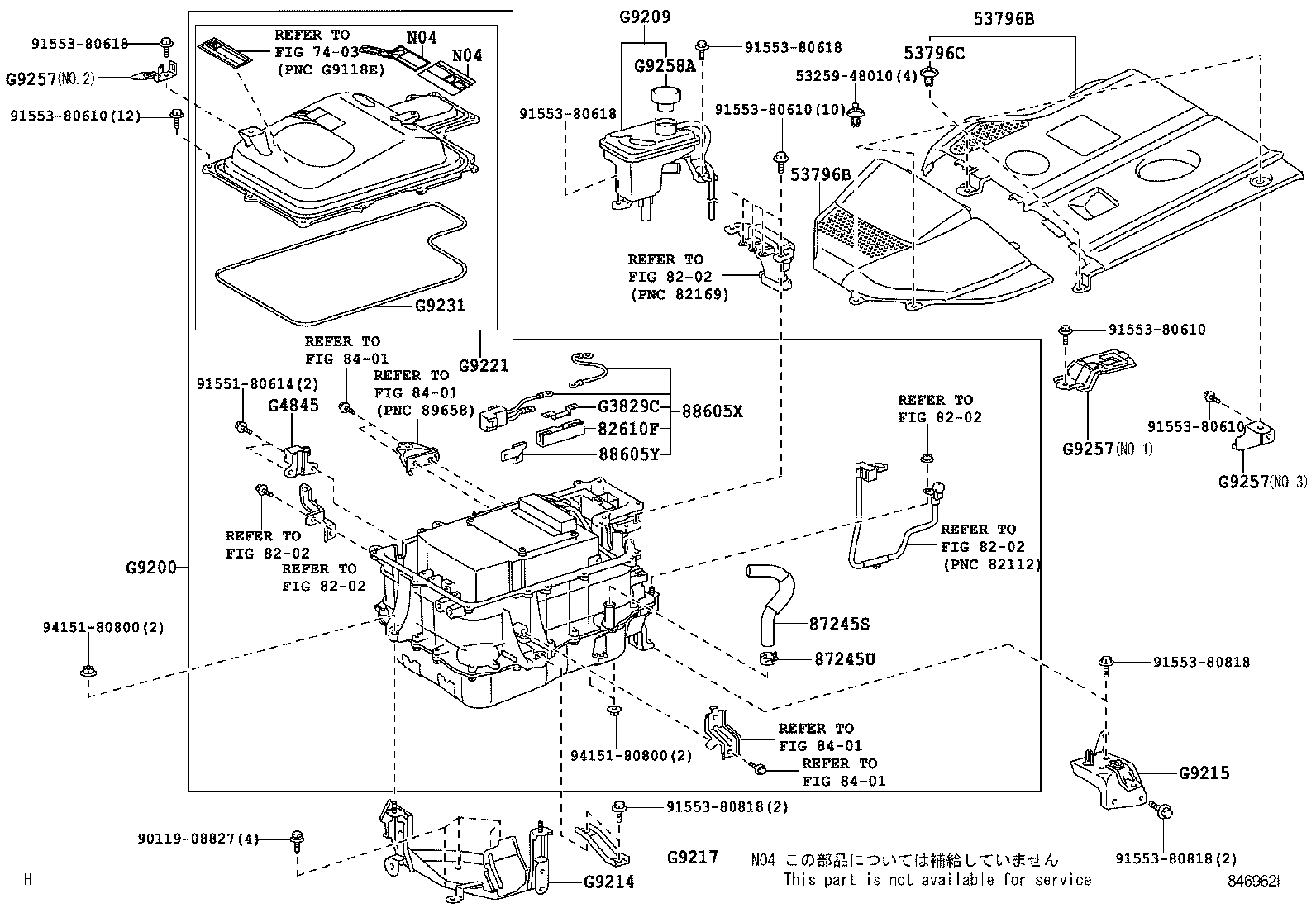

HV INVERTER

(0503- )

 RX400H |  HV INVERTER  ** Std Part 53796B - COVER, ENGINE ROOM SIDE, LH NO.2 53796B - COVER, ENGINE ROOM SIDE, LH NO.2 53796C - CLIP(FOR ENGINE ROOM SIDE COVER LH) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 82610F - BLOCK ASSY, FUSE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 87245S - HOSE, INVERTER WATER, NO.1 87245U - CLAMP OR CLIP (FOR WATER HOSE) 88605X - HARNESS SUB-ASSY, WIRING AIR CONDITIONER 88605Y - BRACKET, COOLER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part G3829C - FUSE, ELECTRIC VEHICLE G4845 - SENSOR, CIRCUIT BREAKER, NO.1 G9200 - INVERTER ASSY, W/CONVERTER G9209 - TANK SUB-ASSY, INVERTER RESERVE G9214 - BRACKET, INVERTER, NO.1 G9215 - BRACKET, INVERTER, NO.2 G9217 - BRACKET, INVERTER, NO.4 G9221 - COVER, INVERTER G9231 - GASKET, INVERTER COVER G9257 - BRACKET, INVERTER, NO.5 G9257 - BRACKET, INVERTER, NO.5 G9257 - BRACKET, INVERTER, NO.5 G9258A - CAP, INVERTER RESERVE TANK
