LEXUS RX400H MHU38L-AWXGKW / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

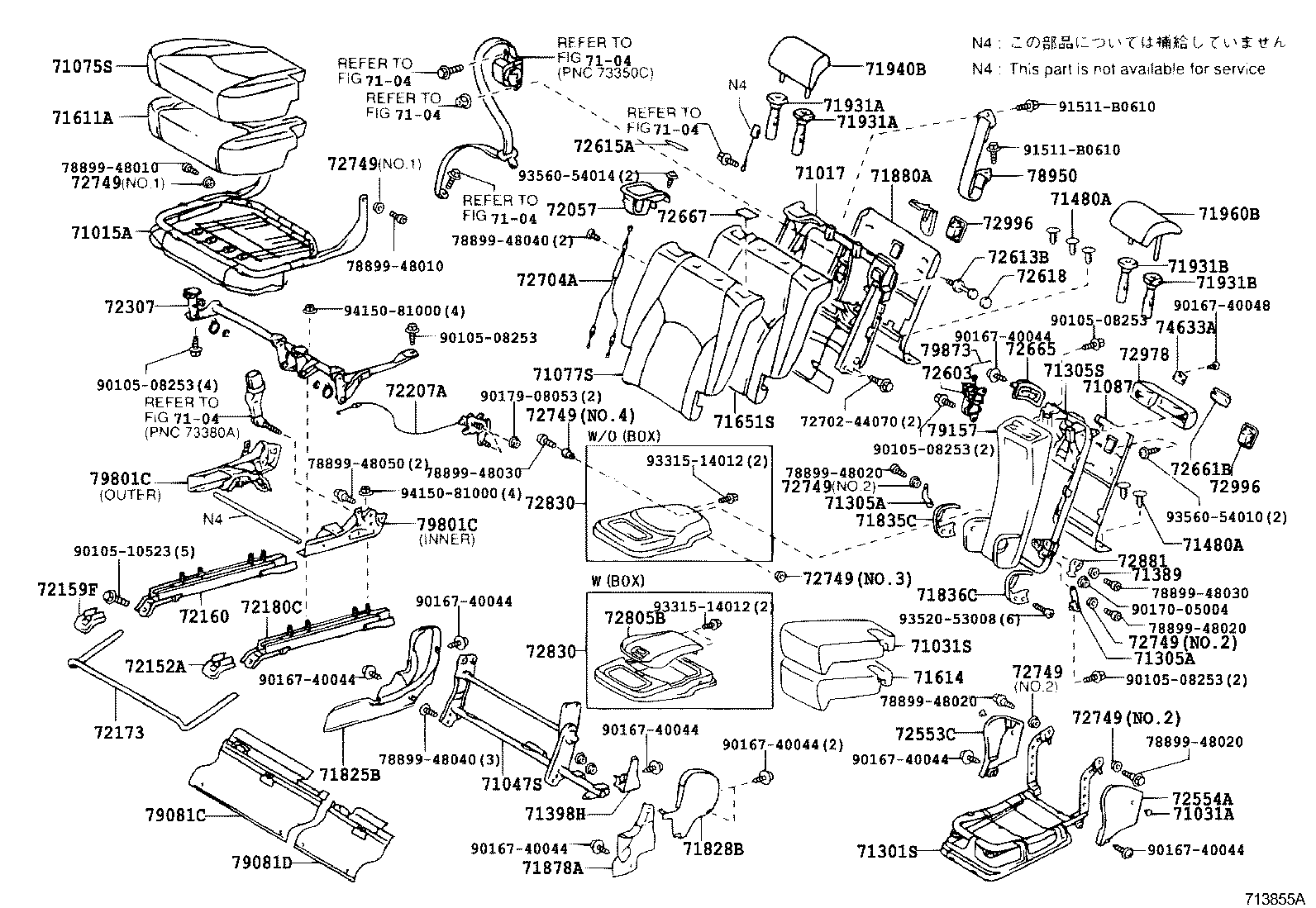

REAR SEAT SEAT TRACK

RH-4:2:4 SPRIT REAR SEAT (0503- )

 RX400H |  REAR SEAT SEAT TRACK 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH 71031A - CLIP, CENTER SEAT CUSHION 71031S - COVER SUB-ASSY, CENTER SEAT CUSHION ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71047S - FRAME SUB-ASSY, REAR SEAT BACK, LOWER RH 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71087 - BOARD SUB-ASSY, REAR SEAT BACK 71301S - FRAME SUB-ASSY, CENTER SEAT CUSHION 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER 71305S - FRAME SUB-ASSY, CENTER SEAT BACK 71389 - SPACER, CENTER SEAT HINGE 71398H - COVER, CENTER SEAT HINGE, UPPER LH 71480A - CLIP (FOR REAR SEAT BACK) 71480A - CLIP (FOR REAR SEAT BACK) 71611A - PAD, REAR SEAT CUSHION, RH 71614 - PAD, REAR SEAT CUSHION, CENTER 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71825B - MOULDING, REAR SEAT CUSHION, RH 71828B - MOULDING, REAR SEAT CUSHION, REAR RH 71835C - MOULDING, REAR SEAT BACK, RH 71836C - MOULDING, REAR SEAT BACK, LH 71878A - COVER, REAR SEAT RECLINING, INNER RH 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST 71940B - HEADREST ASSY, REAR SEAT, RH 71960B - HEADREST ASSY, REAR SEAT, CENTER 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH 72152A - COVER, REAR SEAT TRACK BRACKET, INNER 72159F - COVER, REAR SEAT TRACK BRACKET, RH 72160 - TRACK ASSY, REAR SEAT, OUTER RH 72173 - HANDLE, REAR SEAT TRACK ADJUSTING 72180C - TRACK ASSY, REAR SEAT, INNER RH 72207A - PLATE, SEAT TRACK STOP RH 72307 - LINK SUB-ASSY, RECLINING CONTROL, RH 72553C - PROTECTOR, RECLINING COVER, RH 72554A - PROTECTOR, RECLINING COVER, LH 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH 72613B - STRIKER, REAR SEAT LOCK 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH 72618 - PROTECTOR, REAR SEAT BACK LOCK STRIKER 72661B - LEVER, REAR SEAT BACK ROD CONTROL, OUTER 72665 - COVER, REAR SEAT BACK LOCK, RH 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER  ** Std Part 72704A - CABLE, REAR SEAT RECLINING CONTROL 72749 - SPACER, REAR SEAT RECLINING 72749 - SPACER, REAR SEAT RECLINING 72749 - SPACER, REAR SEAT RECLINING 72749 - SPACER, REAR SEAT RECLINING 72749 - SPACER, REAR SEAT RECLINING 72749 - SPACER, REAR SEAT RECLINING 72749 - SPACER, REAR SEAT RECLINING 72749 - SPACER, REAR SEAT RECLINING 72805B - DOOR SUB-ASSY, REAR SEAT CENTER ARMREST 72830 - ARMREST ASSY, REAR SEAT, CENTER 72830 - ARMREST ASSY, REAR SEAT, CENTER 72881 - SUPPORT, REAR SEAT CENTER ARMREST, RH 72978 - COVER, NO.2 CENTER SEAT BACK 72996 - COVER, REAR SEAT BACK, RH 72996 - COVER, REAR SEAT BACK, RH 74633A - CAP, COAT HOOK  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 79081C - COVER, REAR SEAT, NO.1 79081D - COVER, REAR SEAT, NO.2 79157 - COVER, NO.1 SEAT BACK 79801C - FRAME, FOLD SEAT CUSHION, NO.2 79801C - FRAME, FOLD SEAT CUSHION, NO.2 79873 - WIRE, FOLD SEAT BACK  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
