LEXUS RX300 330 350 GSU35L-AWAGKW / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FUEL TANK TUBE

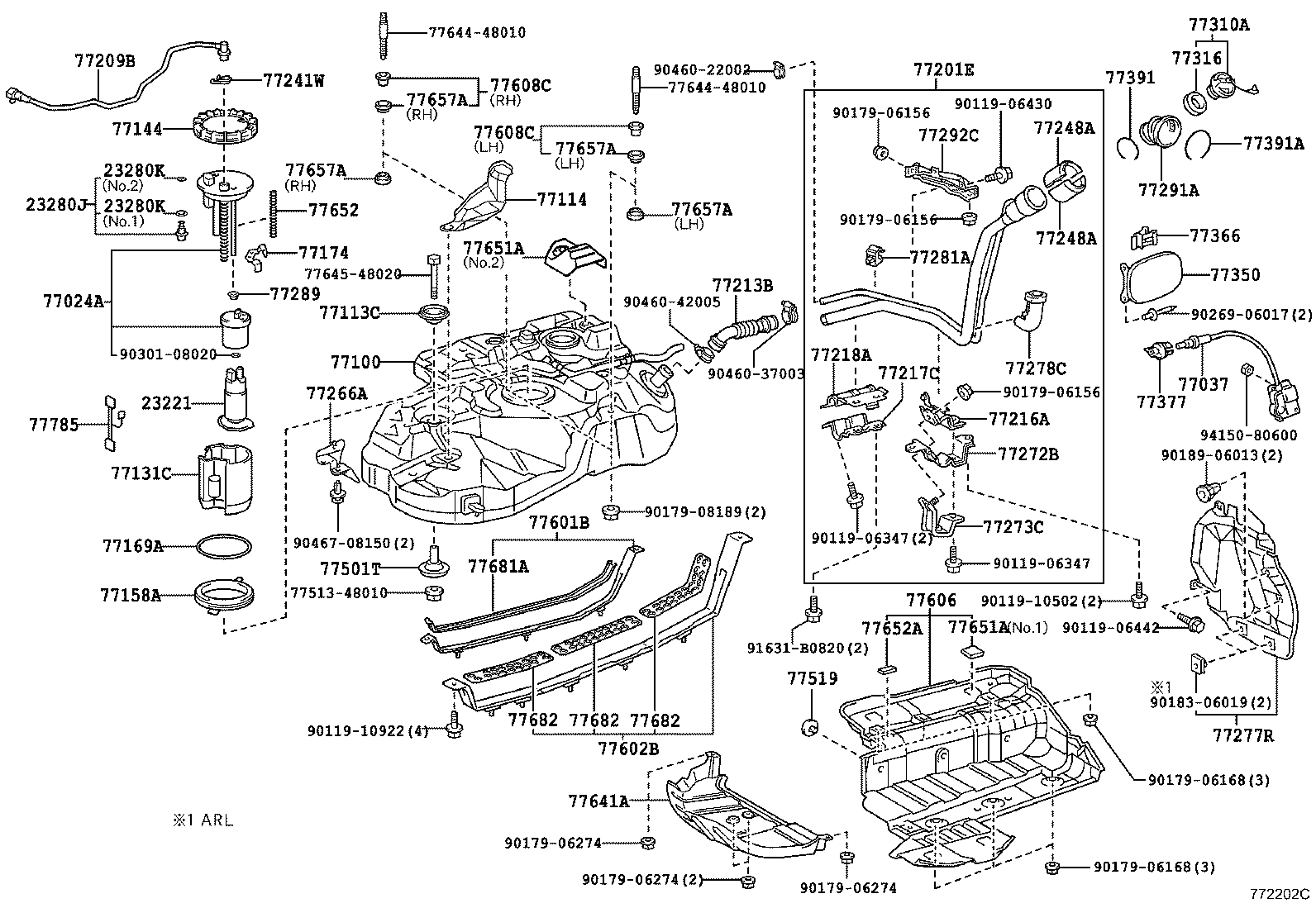

FUEL TANK ILLUST NO. 1 OF 2(0705-0804)

RX300 330 350 | FUEL TANK TUBE 23221 - PUMP, FUEL 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 77024A - PLATE SUB-ASSY, FUEL SUCTION 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID 77100 - TANK ASSY, FUEL 77113C - PLATE, FUEL TANK SIDE 77114 - PLATE, FUEL TANK SIDE, REAR 77131C - SUB-TANK, FUEL, NO.1 77144 - RETAINER, FUEL PUMP GAUGE 77158A - SUPPORT, TANK SUCTION TUBE 77169A - GASKET, FUEL SUCTION TUBE SET 77174 - SUPPORT, FUEL SUCTION, NO.1 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77209B - TUBE SUB-ASSY, FUEL PUMP 77213B - HOSE, FUEL TANK TO FILLER PIPE 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 77241W - CLIP, TUBE JOINT 77248A - HOLDER, FUEL TANK FILLER PIPE COVER 77248A - HOLDER, FUEL TANK FILLER PIPE COVER 77266A - PROTECTOR, FUEL TUBE, NO.1 77272B - SUPPORT, BREATHER TUBE, NO.1 77273C - SUPPORT, BREATHER TUBE, NO.2 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 77281A - CLAMP, FUEL FILLER PIPE 77289 - HOLDER, FUEL TANK PIPE SETTING 77291A - SHIELD, FUEL TANK FILLER PIPE 77292C - SHIELD, FUEL TANK FILLER PIPE, NO.2 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77391 - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77501T - BRACKET SUB-ASSY, FUEL TANK ** Std Part 77519 - SPACER, FUEL TANK BRACKET 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77608C - CUSHION SET, FUEL TANK 77608C - CUSHION SET, FUEL TANK 77641A - PROTECTOR, FUEL TANK, NO.1 ** Std Part ** Std Part ** Std Part 77651A - CUSHION, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 77652 - CUSHION, FUEL TANK, NO.1 77652A - CUSHION, FUEL TANK, NO.2 77657A - CUSHION, FUEL TANK, NO.5 77657A - CUSHION, FUEL TANK, NO.5 77657A - CUSHION, FUEL TANK, NO.5 77657A - CUSHION, FUEL TANK, NO.5 77681A - SEAT, FUEL TANK BAND 77682 - SEAT, FUEL TANK BAND, LH 77682 - SEAT, FUEL TANK BAND, LH 77682 - SEAT, FUEL TANK BAND, LH 77785 - HARNESS, FUEL PUMP ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
