LEXUS RX300 330 350 GSU35L-AWAGKW / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

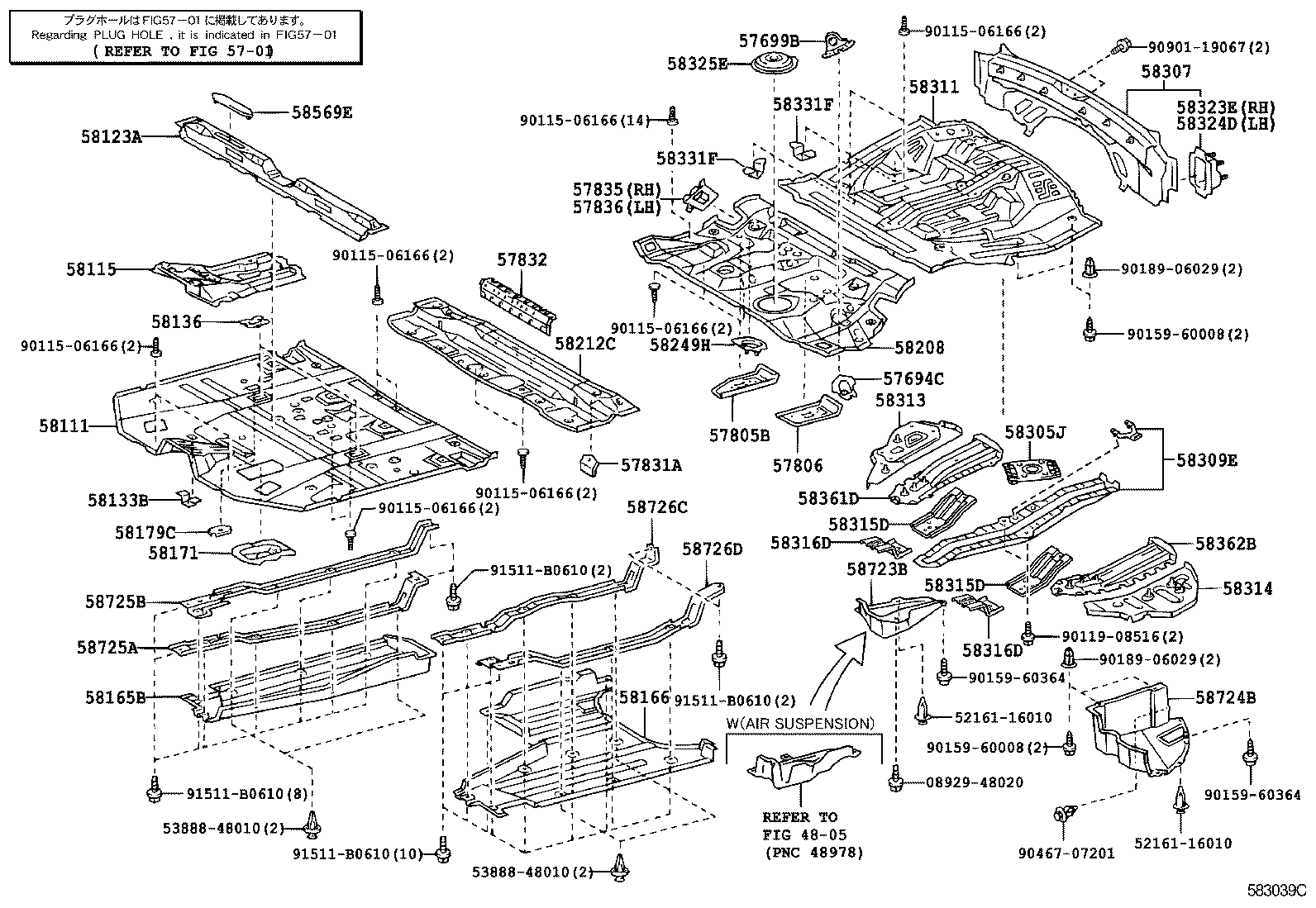

FLOOR PAN LOWER BACK PANEL

ILLUST NO. 2 OF 2(0703- )

RX300 330 350 | FLOOR PAN LOWER BACK PANEL ** Std Part ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Refer Fig 57694C - REINFORCEMENT, FUEL TANK MOUNTING BRACKET, LH 57699B - REINFORCE, FUEL TANK MOUNTING BRACKET, NO.3 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH 57806 - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH 57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2 57835 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1 57836 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2 58111 - PAN, FRONT FLOOR 58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT 58123A - SUPPORT, SHIFT & SELECT LEVER 58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3 58136 - COVER, FRONT FLOOR HOLE 58165B - COVER, FRONT FLOOR, RH 58166 - COVER, FRONT FLOOR, LH 58171 - REINFORCEMENT, PARKING BRAKE BASE 58179C - BRACKET, CLAMP FLOOR 58208 - PAN, CENTER FLOOR 58212C - PAN, CENTER FLOOR, FRONT 58249H - BRACKET, CENTER FLOOR BOARD SUPPORT 58305J - BRACKET, SPARE WHEEL CARRIER 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58309E - PLATE SUB-ASSY, REAR FLOOR 58311 - PAN, REAR FLOOR 58313 - PANEL, REAR FLOOR SIDE, RH 58314 - PANEL, REAR FLOOR SIDE, LH 58315D - EXTENSION, REAR FLOOR PAN, RH 58315D - EXTENSION, REAR FLOOR PAN, RH 58316D - EXTENSION, REAR FLOOR PAN, LH 58316D - EXTENSION, REAR FLOOR PAN, LH 58323E - REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH 58324D - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 58361D - REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH 58362B - REINFORCEMENT, REAR FLOOR PANEL, NO.1 LH 58569E - COVER, FRONT FLOOR CAUTION PLATE 58723B - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1 58724B - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2 58725A - STAY, ENGINE SERVICE COVER 58725B - REINFORCEMENT, LUGGAGE COMPARTMENT SIDE COVER, RH 58726C - STAY, ENGINE SERVICE COVER, NO.2 58726D - STAY, ENGINE SERVICE COVER CATCH, REAR LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
