LEXUS GS30 35 43 460 URS190R-BEZQHW / POWERTRAIN-CHASSIS / BRAKE MASTER CYLINDER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

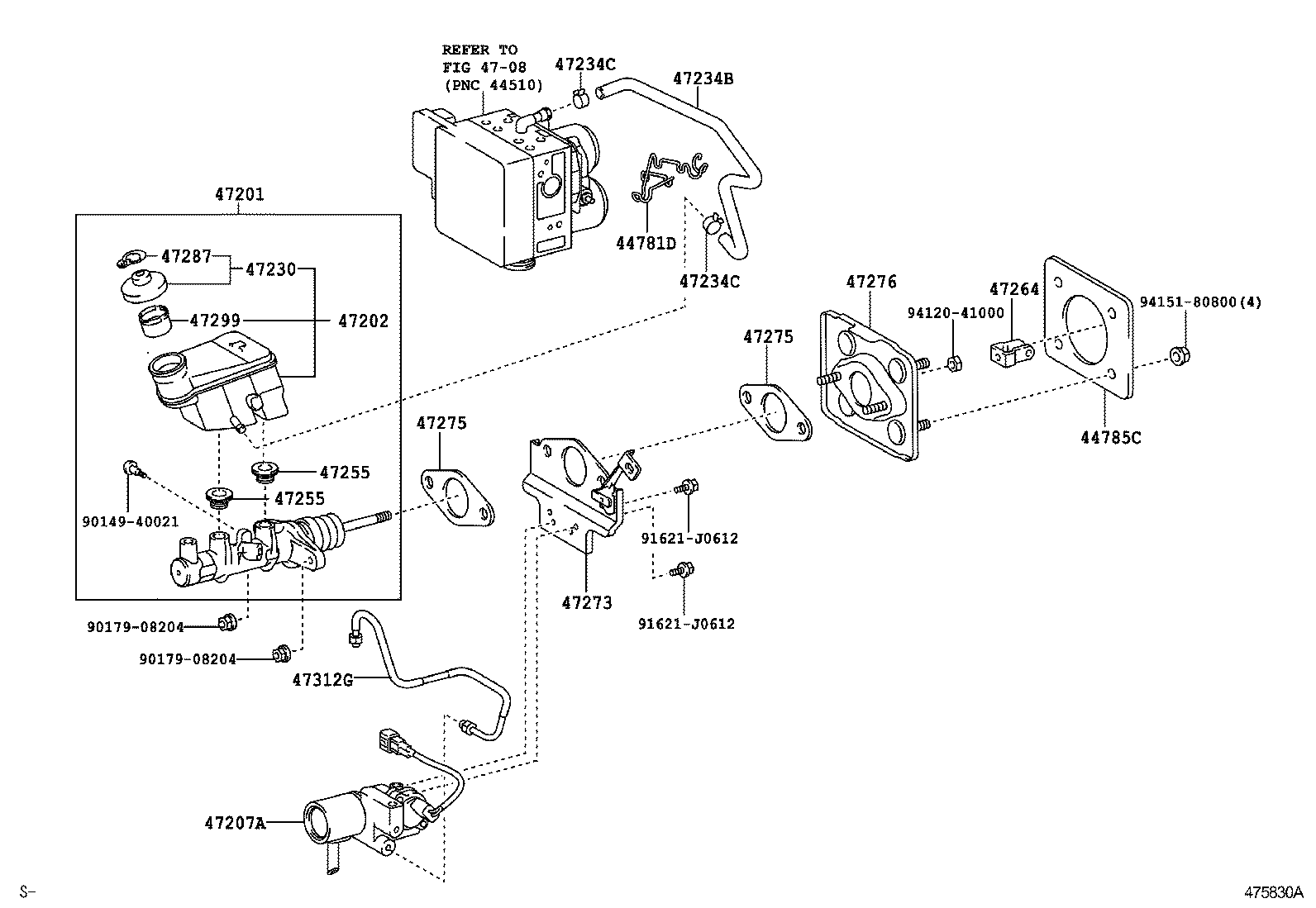

BRAKE MASTER CYLINDER

(0501- )URS190,UZS190..RHD

 GS30 35 43 460 |  BRAKE MASTER CYLINDER 44781D - BRACKET, RESERVOIR HOSE 44785C - GASKET, BRAKE BOOSTER ** Refer Fig 47201 - CYLINDER SUB-ASSY, BRAKE MASTER 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER 47207A - CYLINDER SUB-ASSY, BRAKE STROKE SIMULATOR 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER 47234B - TUBE, RESERVOIR, NO.1 47234C - CLIP(FOR RESERVOIR TUBE NO.1) 47234C - CLIP(FOR RESERVOIR TUBE NO.1) 47255 - GROMMET, MASTER CYLINDER RESERVOIR 47255 - GROMMET, MASTER CYLINDER RESERVOIR 47264 - CLEVIS, MASTER CYLINDER PUSH ROD 47273 - BRACKET, BRAKE STROKE SIMULATOR 47275 - GASKET, BRAKE MASTER CYLINDER 47275 - GASKET, BRAKE MASTER CYLINDER 47276 - BRACKET, BRAKE MASTER CYLINDER 47287 - LABEL, BRAKE FLUID INFORMATION 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR 47312G - TUBE, BRAKE STROKE SIMULATOR  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
