LEXUS RX300 330 350 MCU38R-AWAGKQ / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

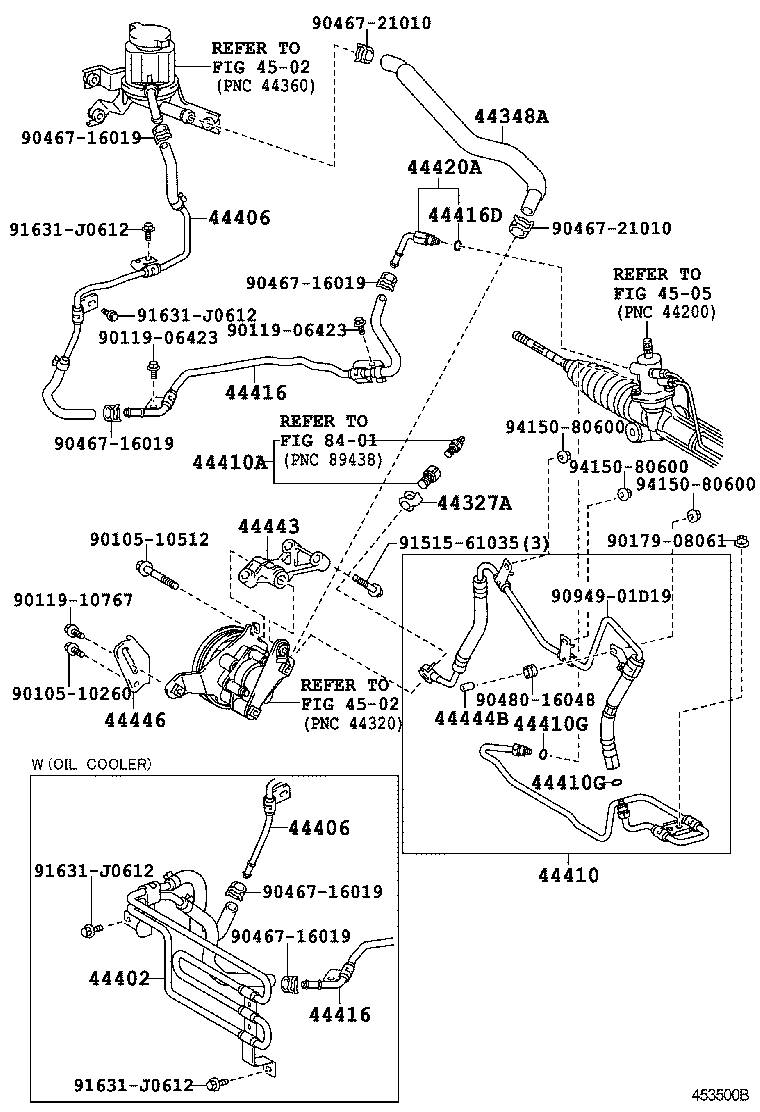

POWER STEERING TUBE

(0302- )MCU3#..RHD

 RX300 330 350 |  POWER STEERING TUBE 44327A - GASKET, PRESSURE PORT, NO.1 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 44406 - TUBE SUB-ASSY, RETURN 44406 - TUBE SUB-ASSY, RETURN 44410 - TUBE ASSY, PRESSURE FEED 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) 44410G - RING, O(FOR PRESSURE FEED TUBE) 44410G - RING, O(FOR PRESSURE FEED TUBE) 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) 44416D - RING, O(FOR RETURN TUBE) 44420A - TUBE ASSY, RETURN 44443 - BRACKET, PUMP 44444B - COLLAR (FOR PUMP REAR STAY) 44446 - STRUT, ADJUSTING ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
