LEXUS RX300 330 350 MCU38R-AWAGKQ / POWERTRAIN-CHASSIS / PROPELLER SHAFT UNIVERSAL JOINT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

PROPELLER SHAFT UNIVERSAL JOINT

(0302- )

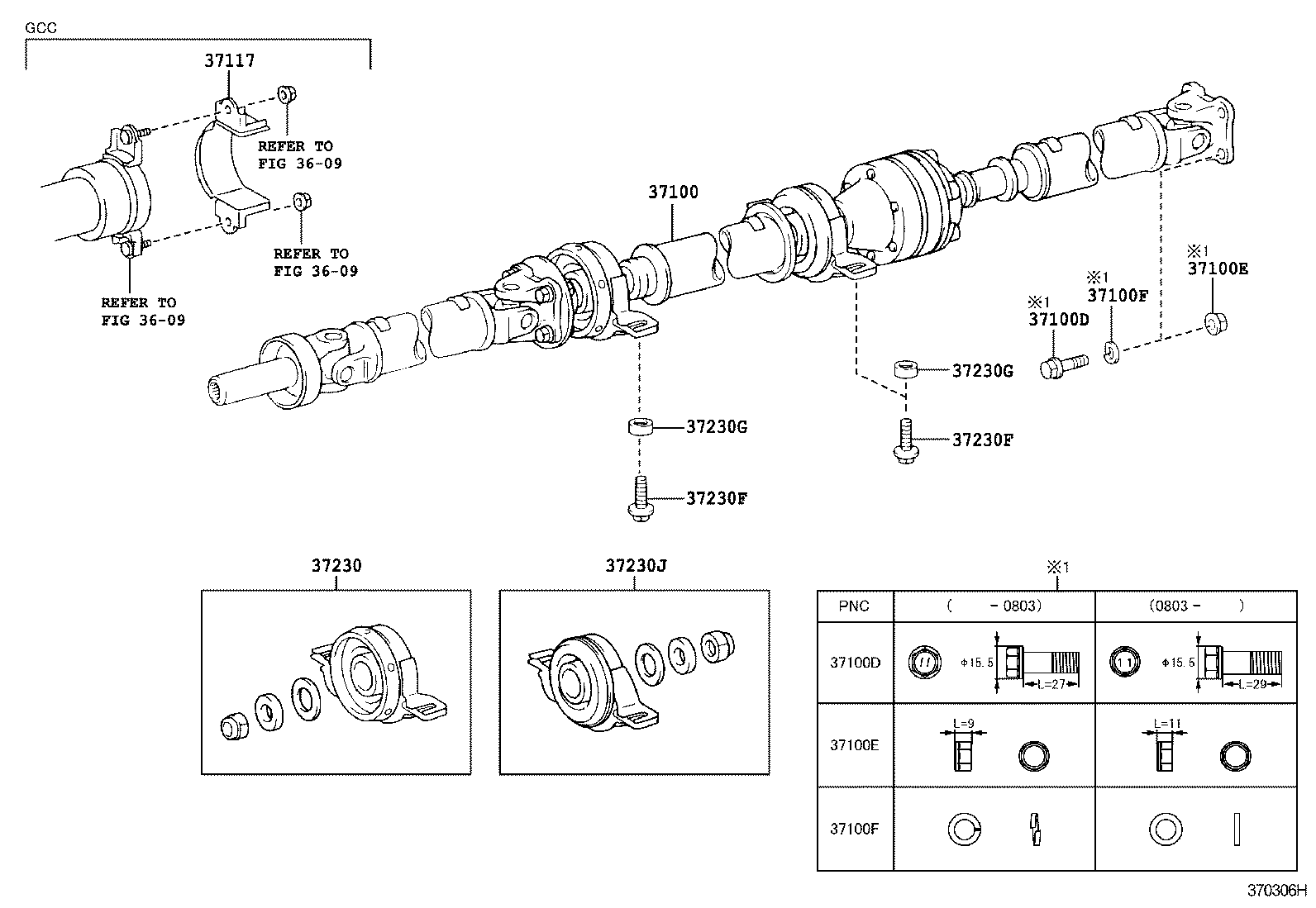

 RX300 330 350 |  PROPELLER SHAFT UNIVERSAL JOINT ** Refer Fig ** Refer Fig ** Refer Fig 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING 37100D - BOLT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) 37100E - NUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) 37100F - WASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) 37117 - INSULATOR, PROPELLER SHAFT HEAT 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) 37230J - BEARING ASSY, CENTER SUPPORT, NO.2
