LEXUS RX300 330 350 MCU38R-AWAGKQ / ELECTRICAL / INTERIOR LAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

INTERIOR LAMP

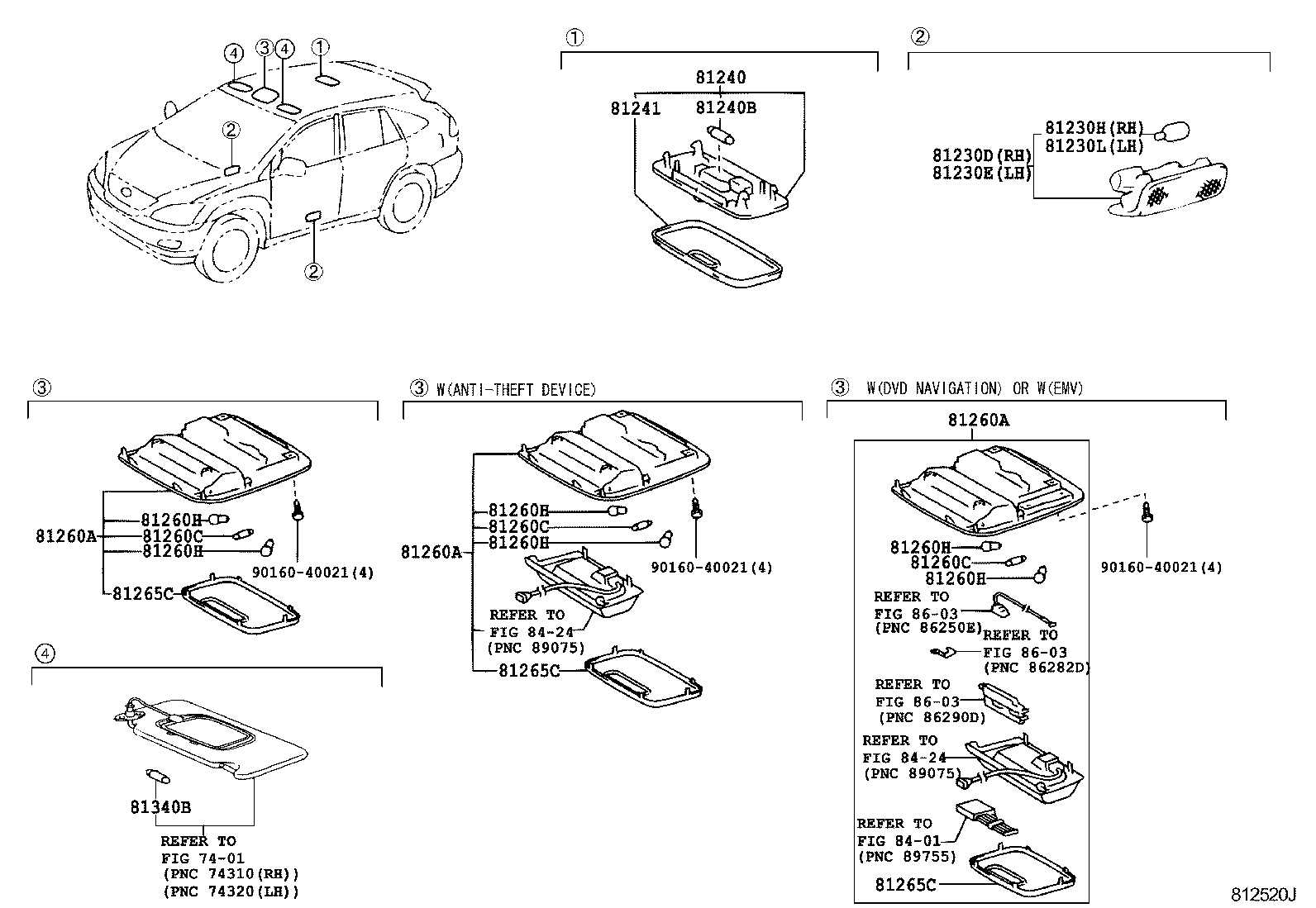

ILLUST NO. 1 OF 2(0302- )

 RX300 330 350 |  INTERIOR LAMP ** Refer Fig 81230D - LAMP ASSY, FRONT DOOR COURTESY, RH 81230E - LAMP ASSY, FRONT DOOR COURTESY, LH 81230H - BULB(FOR FRONT DOOR COURTESY LAMP RH) 81230L - BULB(FOR FRONT DOOR COURTESY LAMP LH) 81240 - LAMP ASSY, ROOM, NO.1 81240B - BULB, ROOM LAMP, NO.1 81241 - LENS, ROOM LAMP, NO.1 81260A - LAMP ASSY, MAP 81260A - LAMP ASSY, MAP 81260C - BULB(FOR MAP LAMP) 81260C - BULB(FOR MAP LAMP) 81260H - BULB(FOR MAP LAMP), NO.2 81260H - BULB(FOR MAP LAMP), NO.2 81260H - BULB(FOR MAP LAMP), NO.2 81260H - BULB(FOR MAP LAMP), NO.2 81265C - LENS, MAP LAMP, NO.1 81265C - LENS, MAP LAMP, NO.1 81265C - LENS, MAP LAMP, NO.1 81340B - BULB (FOR VANITY LAMP) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part
