LEXUS RX300 330 350 MCU38R-AWAGKQ / BODY / FRONT BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

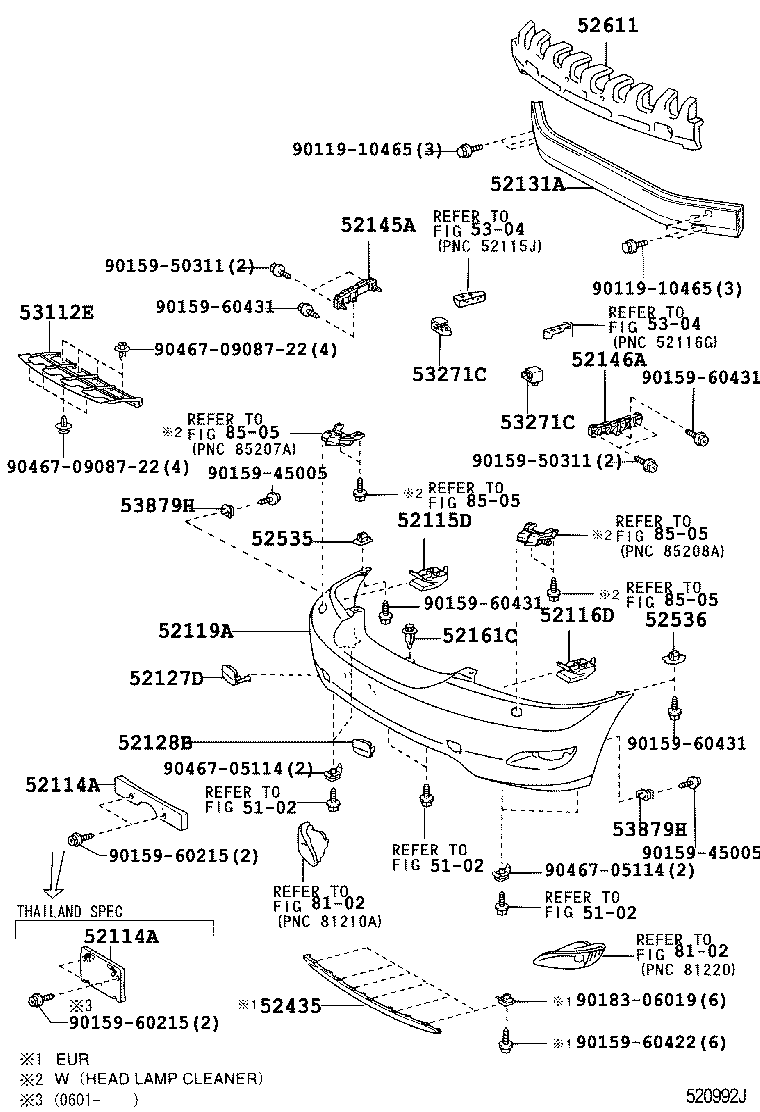

FRONT BUMPER BUMPER STAY

(0302- )

 RX300 330 350 |  FRONT BUMPER BUMPER STAY ** Refer Fig ** Refer Fig ** Refer Fig 52114A - BRACKET, FRONT BUMPER EXTENTION MOUNTING 52114A - BRACKET, FRONT BUMPER EXTENTION MOUNTING 52115D - SUPPORT, FRONT BUMPER SIDE, NO.2 RH 52116D - SUPPORT, FRONT BUMPER SIDE, NO.2 LH 52119A - COVER, FRONT BUMPER 52127D - COVER, FRONT BUMPER HOLE, RH 52128B - COVER, FRONT BUMPER HOLE, LH 52131A - REINFORCEMENT, FRONT BUMPER 52145A - STAY, FRONT BUMPER, NO.2 RH 52146A - STAY, FRONT BUMPER, NO.2 LH 52161C - PIECE, FRONT BUMPER 52435 - GARNISH, FRONT BUMPER GUARD 52535 - RETAINER, FRONT BUMPER SIDE, RH 52536 - RETAINER, FRONT BUMPER SIDE, LH 52611 - ABSORBER, FRONT BUMPER ENERGY ** Refer Fig ** Refer Fig 53112E - GRILLE, RADIATOR, LOWER NO.1 53271C - BRACKET, HEADLAMP MOUNTING 53271C - BRACKET, HEADLAMP MOUNTING 53879H - RETAINER, FRONT FENDER LINER 53879H - RETAINER, FRONT FENDER LINER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
