LEXUS IS250 350 2 D ALE20L-AEFSYW / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

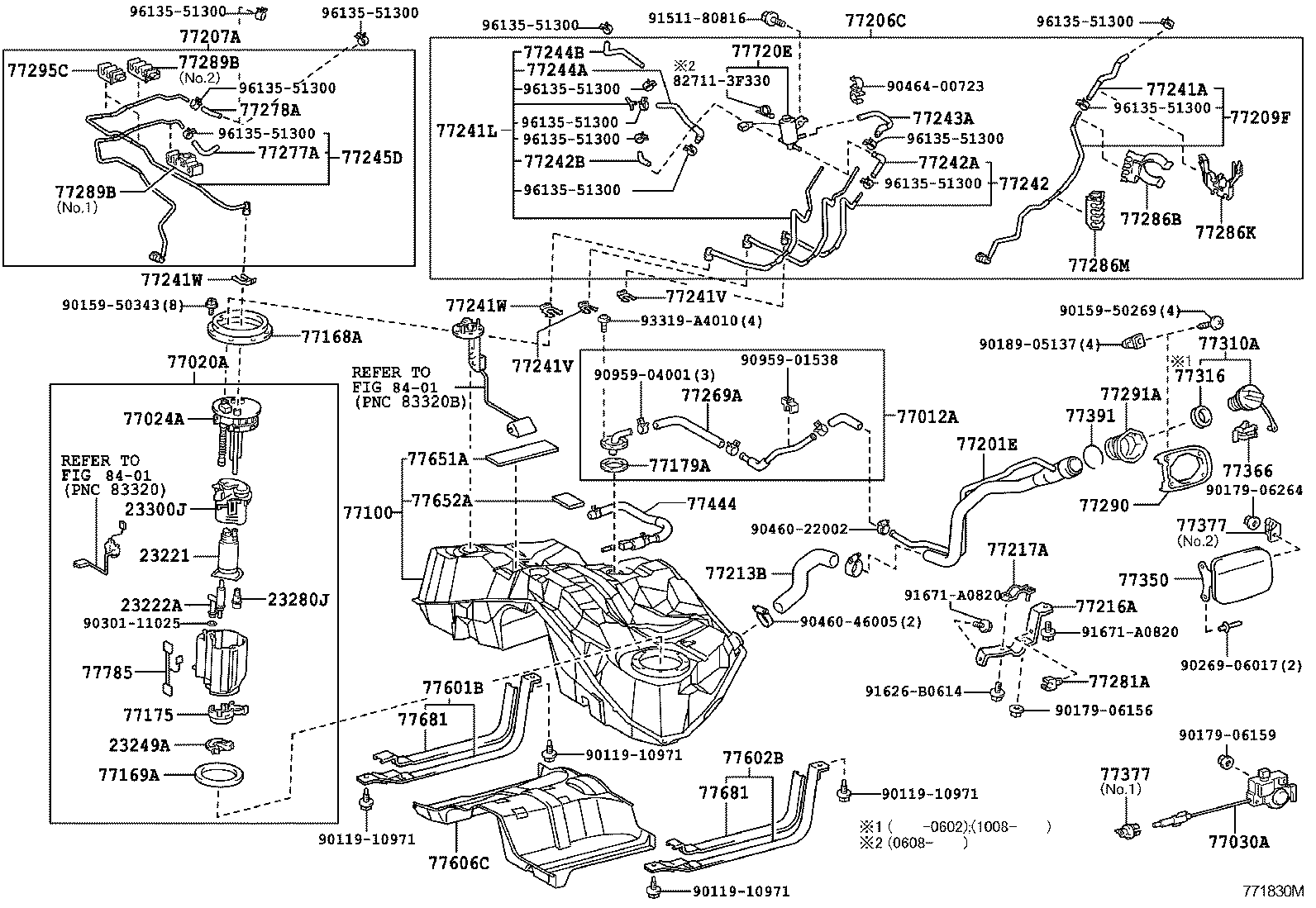

FUEL TANK ILLUST NO. 1 OF 2(0511- )ALE20

 IS250 350 2 D |  FUEL TANK TUBE 23221 - PUMP, FUEL 23222A - TUBE, FUEL RETURN JET 23249A - RUBBER, CUSHION(FOR FUEL PUMP) 23280J - REGULATOR ASSY, FUEL PRESSURE 23300J - FILTER ASSY, FUEL 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77024A - PLATE SUB-ASSY, FUEL SUCTION 77030A - LOCK ASSY, FUEL LID W/MOTOR 77100 - TANK ASSY, FUEL 77168A - PLATE, FUEL TANK VENT TUBE SET 77169A - GASKET, FUEL SUCTION TUBE SET 77175 - SUPPORT, FUEL SUCTION, NO.2 77179A - GASKET, FUEL TANK BREATHER TUBE 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 77207A - TUBE SUB-ASSY, FUEL RETURN 77209F - TUBE SUB-ASSY, FUEL TANK MAIN 77213B - HOSE, FUEL TANK TO FILLER PIPE 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) 77241L - TUBE, FUEL TANK SUCTION 77241V - CLIP, TUBE JOINT 77241V - CLIP, TUBE JOINT 77241W - CLIP, TUBE JOINT 77241W - CLIP, TUBE JOINT 77242 - TUBE, FUEL MAIN, NO.2 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) 77244A - HOSE, FUEL, N0.1 (FOR MAIN TUBE, N0.4) 77244B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.4) 77245D - TUBE, FUEL TANK RETURN VENT 77269A - HOSE, FUEL TANK BREATHER 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) 77281A - CLAMP, FUEL FILLER PIPE 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 77286K - CLAMP, FUEL TUBE, NO.2 77286M - CLAMP, FUEL TUBE, NO.6 77289B - CLAMP, FUEL TUBE, NO.3 77289B - CLAMP, FUEL TUBE, NO.3 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77291A - SHIELD, FUEL TANK FILLER PIPE 77295C - GROMMET, FUEL TUBE 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77391 - RING, FUEL INLET BOX 77444 - HOSE, FUEL TANK VENT 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77606C - PROTECTOR, FUEL TANK, NO.2 77651A - CUSHION, FUEL TANK, NO.1 77652A - CUSHION, FUEL TANK, NO.2 77681 - SEAT, FUEL TANK BAND, RH 77681 - SEAT, FUEL TANK BAND, RH 77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN 77785 - HARNESS, FUEL PUMP  ** Std Part ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
