FUEL INJECTION SYSTEM

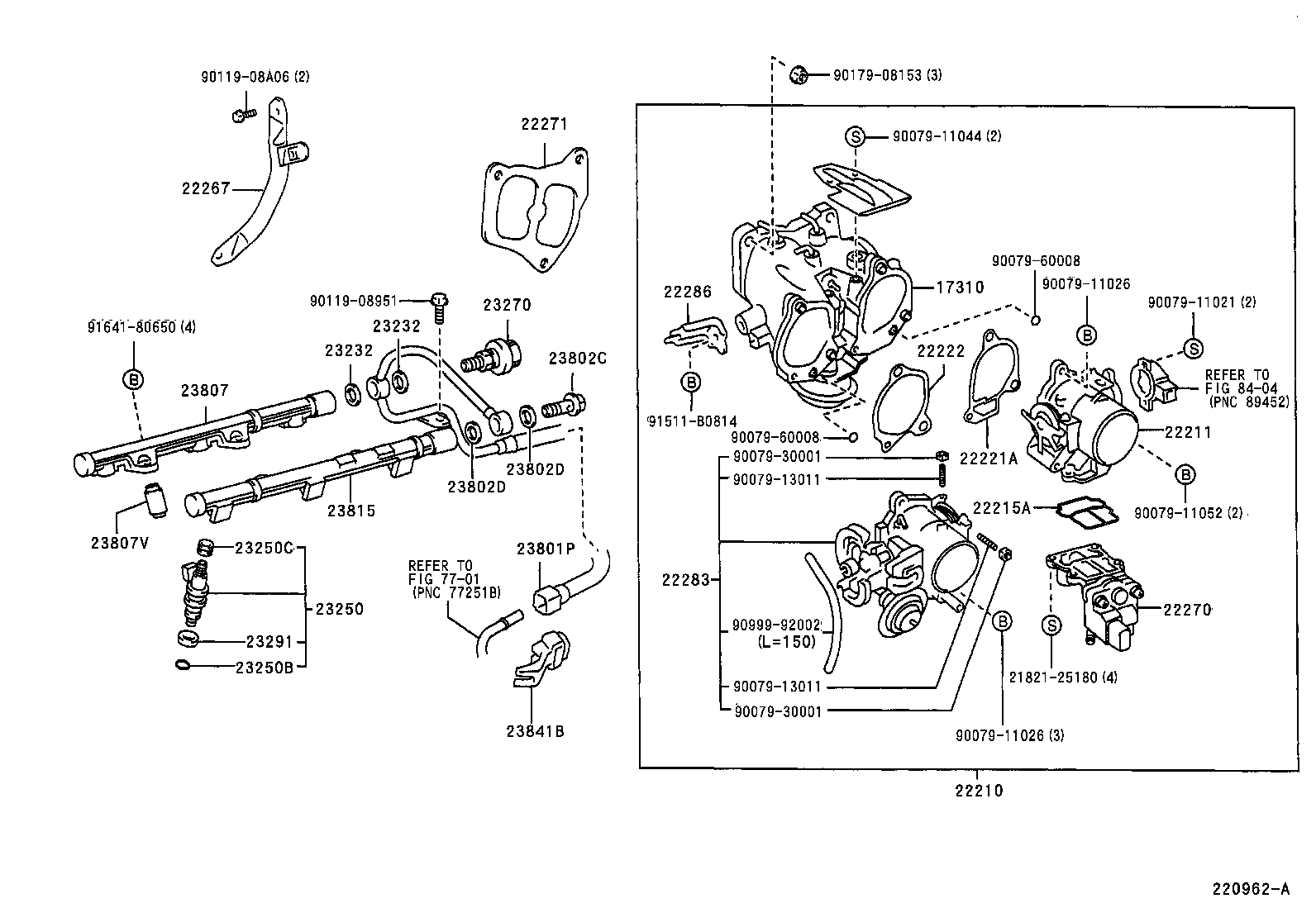

ILLUST NO. 1 OF 2(0007- )

 RX300 |  FUEL INJECTION SYSTEM 17310 - VALVE ASSY, INTAKE AIR CONTROL, NO.1  ** Std Part 22210 - BODY ASSY, THROTTLE 22211 - BODY, THROTTLE 22215A - GASKET, IDLE SPEED CONTROL VALVE 22221A - GASKET, INTAKE AIR CONTROL VALVE, NO.1 22222 - GASKET, INTAKE AIR CONTROL VALVE, NO.2 22267 - BRACKET, THROTTLE BODY 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) 22271 - GASKET, THROTTLE BODY 22283 - BODY, THROTTLE, NO.2 22286 - BRACKET, THROTTLE BODY 23232 - GASKET(FOR FUEL PUMP HOSE) 23232 - GASKET(FOR FUEL PUMP HOSE) 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250C - GROMMET(FOR FUEL INJECTOR) 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23291 - INSULATOR, INJECTOR VIBRATION 23801P - PIPE SUB-ASSY, FUEL, NO.1 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) 23802D - GASKET(FOR FUEL PIPE NO.2) 23802D - GASKET(FOR FUEL PIPE NO.2) 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807V - SPACER, NO.1(FOR DELIVERY PIPE) 23815 - PIPE, FUEL DELIVERY, NO.2 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
