LEXUS LS400 UCF20L-AEAGKV / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

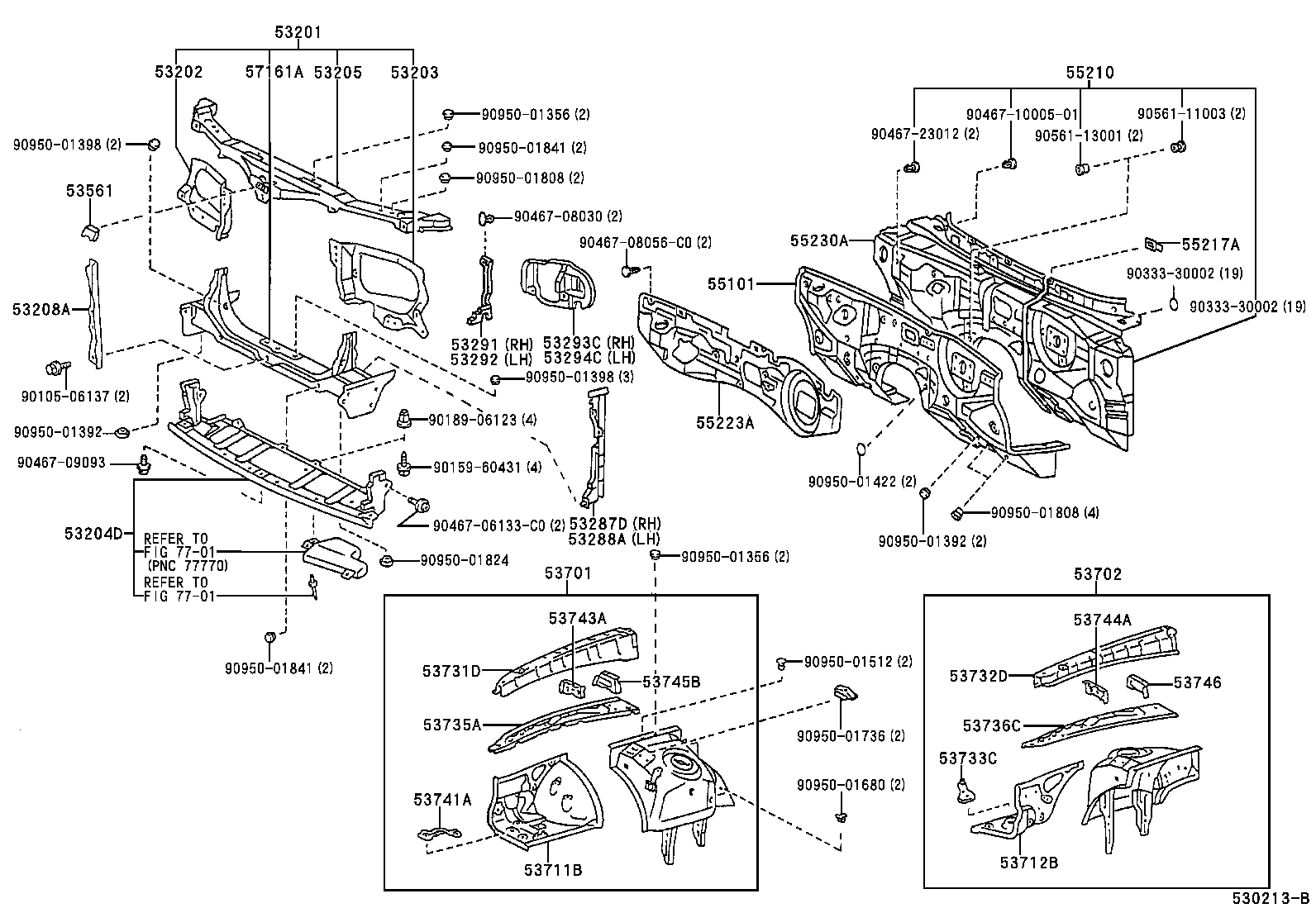

FRONT FENDER APRON DASH PANEL

(9410- )LHD

 LS400 |  FRONT FENDER APRON DASH PANEL 53201 - SUPPORT SUB-ASSY, RADIATOR 53202 - SUPPORT SUB-ASSY, RADIATOR, RH 53203 - SUPPORT SUB-ASSY, RADIATOR, LH 53204D - GUIDE SUB-ASSY, LOWER WIND 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER 53208A - SUPPORT SUB-ASSY, HOOD LOCK 53287D - DUCT, COOL AIR INTAKE 53288A - DUCT, COOL AIR INTAKE 53291 - SEAL, RADIATOR SUPPORT TO FRAME, RH 53292 - SEAL, RADIATOR SUPPORT TO FRAME, LH 53293C - DEFLECTOR, RADIATOR SIDE, RH 53294C - DEFLECTOR, RADIATOR SIDE, LH 53561 - GUIDE, HOOD AUXILIARY CATCH HOOK 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53711B - APRON, FRONT FENDER, FRONT RH 53712B - APRON, FRONT FENDER, FRONT LH 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH 53733C - PATCH, FRONT FENDER APRON 53735A - MEMBER, FRONT APRON TO COWL SIDE, LOWER RH 53736C - MEMBER, FRONT APRON TO COWL SIDE, LOWER LH 53741A - PLATE, FENDER APRON REINFORCE, RH 53743A - REINFORCEMENT, FRONT FENDER APRON, FRONT RH 53744A - REINFORCEMENT, FRONT FENDER APRON, FRONT LH 53745B - REINFORCEMENT, FRONT FENDER APRON, REAR RH 53746 - REINFORCEMENT, FRONT FENDER APRON, REAR LH 55101 - PANEL SUB-ASSY, DASH 55210 - INSULATOR ASSY, DASH PANEL 55217A - RETAINER, DASH PANEL SILENCER 55223A - INSULATOR, DASH PANEL, OUTER 55230A - INSULATOR ASSY, DASH PANEL, NO.4 57161A - MEMBER, FRONT CROSS, FRONT W/REAR ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
