LEXUS IS200 300 GXE10L-AEFVKW / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FUEL TANK TUBE

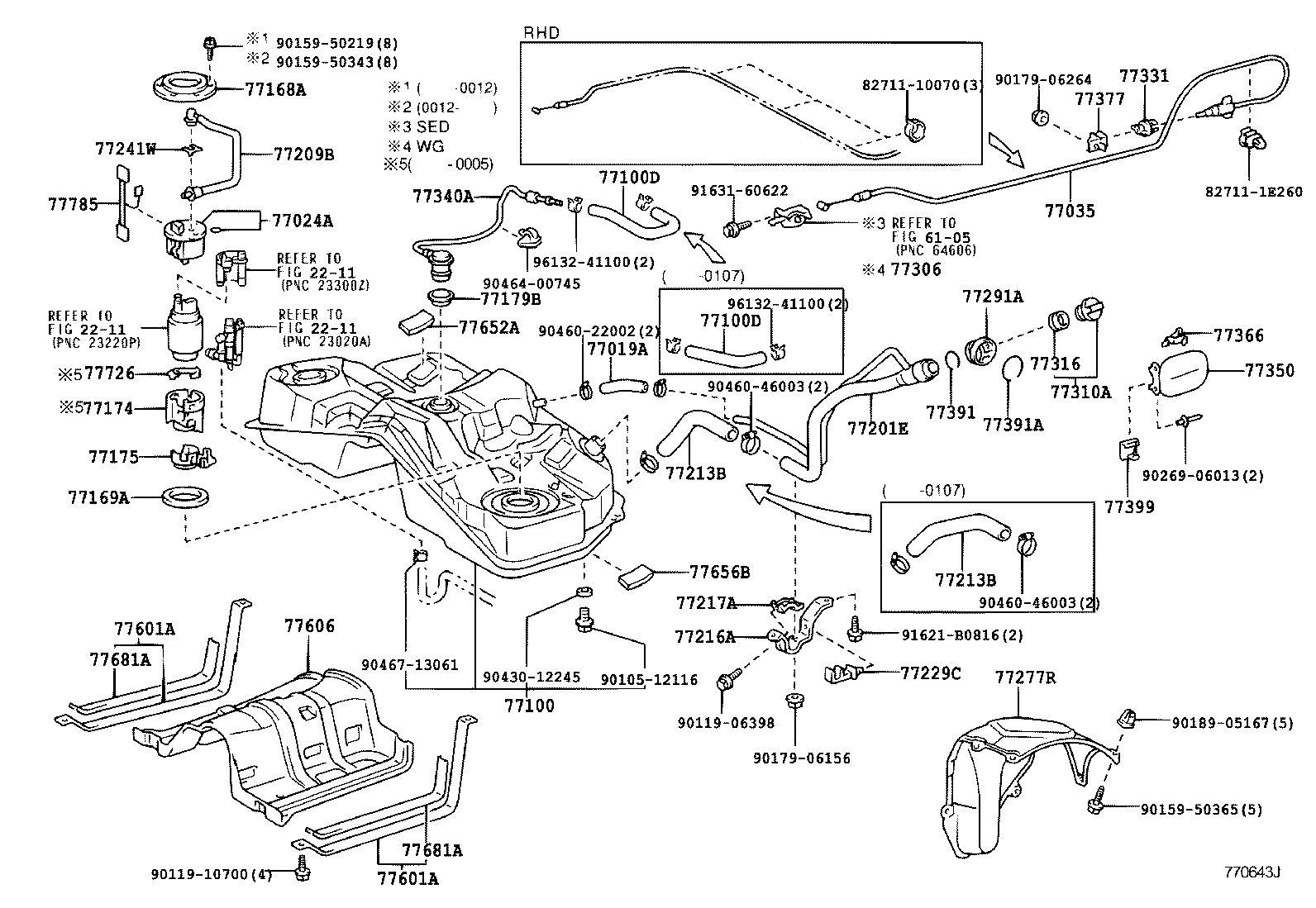

ILLUST NO. 1 OF 2(9901- )GXE10

IS200 300 | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77019A - HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK) 77024A - PLATE SUB-ASSY, FUEL SUCTION 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77100 - TANK ASSY, FUEL 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) 77168A - PLATE, FUEL TANK VENT TUBE SET 77169A - GASKET, FUEL SUCTION TUBE SET 77174 - SUPPORT, FUEL SUCTION, NO.1 77175 - SUPPORT, FUEL SUCTION, NO.2 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77209B - TUBE SUB-ASSY, FUEL PUMP 77213B - HOSE, FUEL TANK TO FILLER PIPE 77213B - HOSE, FUEL TANK TO FILLER PIPE 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77229C - CLAMP, BREATHER TUBE 77241W - CLIP, TUBE JOINT 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77291A - SHIELD, FUEL TANK FILLER PIPE 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77331 - BRACKET, FUEL LID LOCK CONTROL 77340A - VALVE ASSY, FUEL CUT OFF W/TUBE 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77391 - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77399 - HANGER, FUEL TANK CAP 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77652A - CUSHION, FUEL TANK, NO.2 77656B - CUSHION, FUEL TANK, NO.6 77681A - SEAT, FUEL TANK BAND 77681A - SEAT, FUEL TANK BAND 77726 - CUSHION, FUEL FILTER, NO.2 77785 - HARNESS, FUEL PUMP ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
