LEXUS IS200 300 GXE10L-AEFVKW / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

INSTRUMENT PANEL GLOVE COMPARTMENT

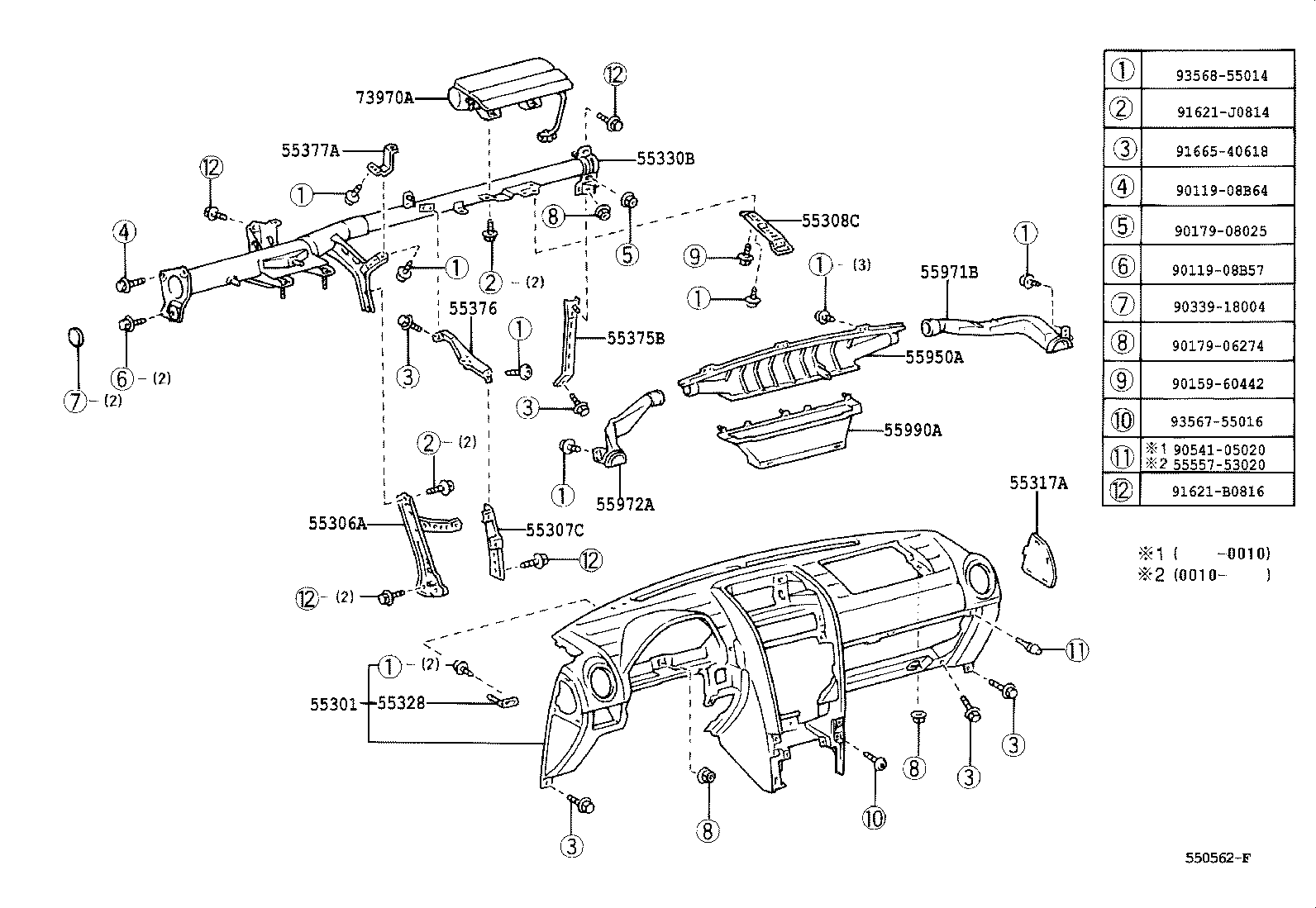

ILLUST NO. 1 OF 3(9901- )LHD

 IS200 300 |  INSTRUMENT PANEL GLOVE COMPARTMENT 55301 - PANEL SUB-ASSY, INSTRUMENT 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER 55317A - PANEL, INSTRUMENT SIDE, RH 55328 - PIN, INSTRUMENT PANEL, NO.1 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2  ** Std Part 55950A - NOZZLE ASSY, DEFROSTER 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 55990A - NOZZLE ASSY, DEFROSTER, LOWER 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
