LEXUS LS400 UCF10L-AEPGKV / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

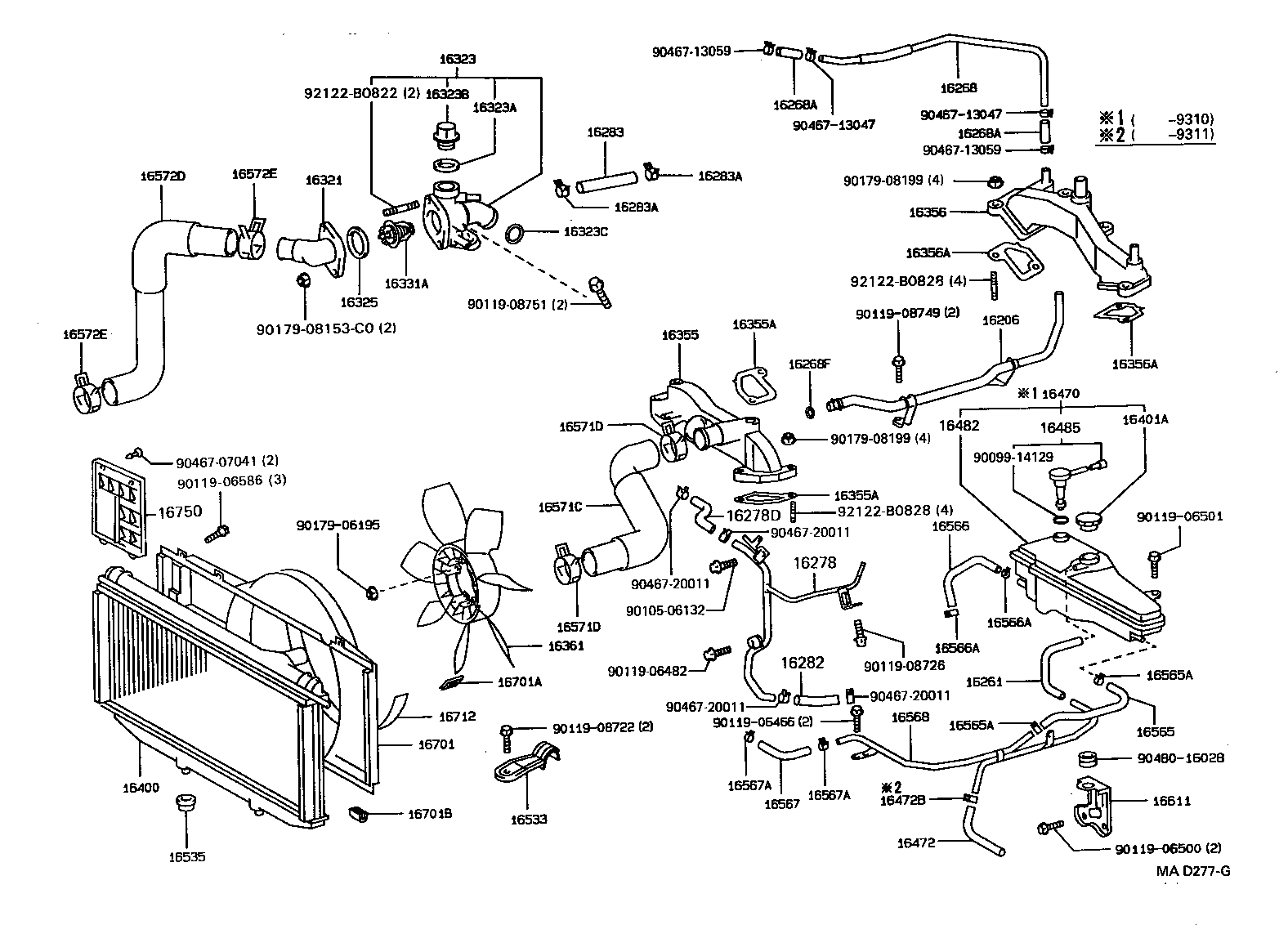

ILLUST NO. 1 OF 2(8912- )1UZFE..GEN,V

 LS400 |  RADIATOR WATER OUTLET 16206 - PIPE SUB-ASSY, WATER BY-PASS 16261 - HOSE, WATER BY-PASS 16268 - PIPE, WATER BY-PASS, NO.1 16268A - HOSE(FOR WATER BY-PASS PIPE) 16268A - HOSE(FOR WATER BY-PASS PIPE) 16268F - RING, O(FOR WATER BY-PASS PIPE) 16278 - PIPE, WATER BY-PASS, NO.2 16278D - HOSE, WATER BY-PASS 16282 - HOSE, WATER BY-PASS, NO.5 16283 - HOSE, WATER BY-PASS, NO.6 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16321 - INLET, WATER 16323 - HOUSING, WATER INLET 16323A - GASKET(FOR WATER INLET HOUSING) 16323B - PLUG(FOR WATER INLET HOUSING) 16323C - RING, O(FOR WATER INLET HOUSING) 16325 - GASKET, WATER INLET HOUSING, NO.1 16331A - THERMOSTAT 16355 - JOINT, WATER BY-PASS, FRONT 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) 16356 - JOINT, WATER BY-PASS, REAR 16356A - GASKET(WATER BY-PASS JOINT, REAR) 16356A - GASKET(WATER BY-PASS JOINT, REAR) 16361 - FAN 16400 - RADIATOR ASSY 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK 16470 - TANK ASSY, RADIATOR RESERVE 16472 - HOSE, BREATHER 16472B - CLIP(FOR BREATHER HOSE) 16482 - TANK SUB-ASSY, RADIATOR RESERVE 16485 - SWITCH ASSY, LEVEL WARNING 16533 - SUPPORT, RADIATOR, UPPER 16535 - SUPPORT, RADIATOR, LOWER 16565 - HOSE, RESERVE TANK INLET 16565A - CLIP 16565A - CLIP 16566 - HOSE, RESERVE TANK OUTLET 16566A - CLIP(FOR RESERVE TANK OUTLET) 16566A - CLIP(FOR RESERVE TANK OUTLET) 16567 - HOSE(FOR RADIATOR RESERVE TANK) 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) 16568 - PIPE, RADIATOR TO RESERVE TANK 16571C - HOSE, RADIATOR, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16572D - HOSE, RADIATOR, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16611 - BRACKET, RADIATOR RESERVE TANK 16701 - SHROUD SUB-ASSY, FAN 16701A - CLIP(FOR FAN SHROUD) 16701B - CUSHION, FAN SHROUD 16712 - SHROUD, FAN, NO.2 16750 - DUCT ASSY, FAN SHROUD VENTILATION  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
