LEXUS GS300 JZS147R-BEPQFW / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

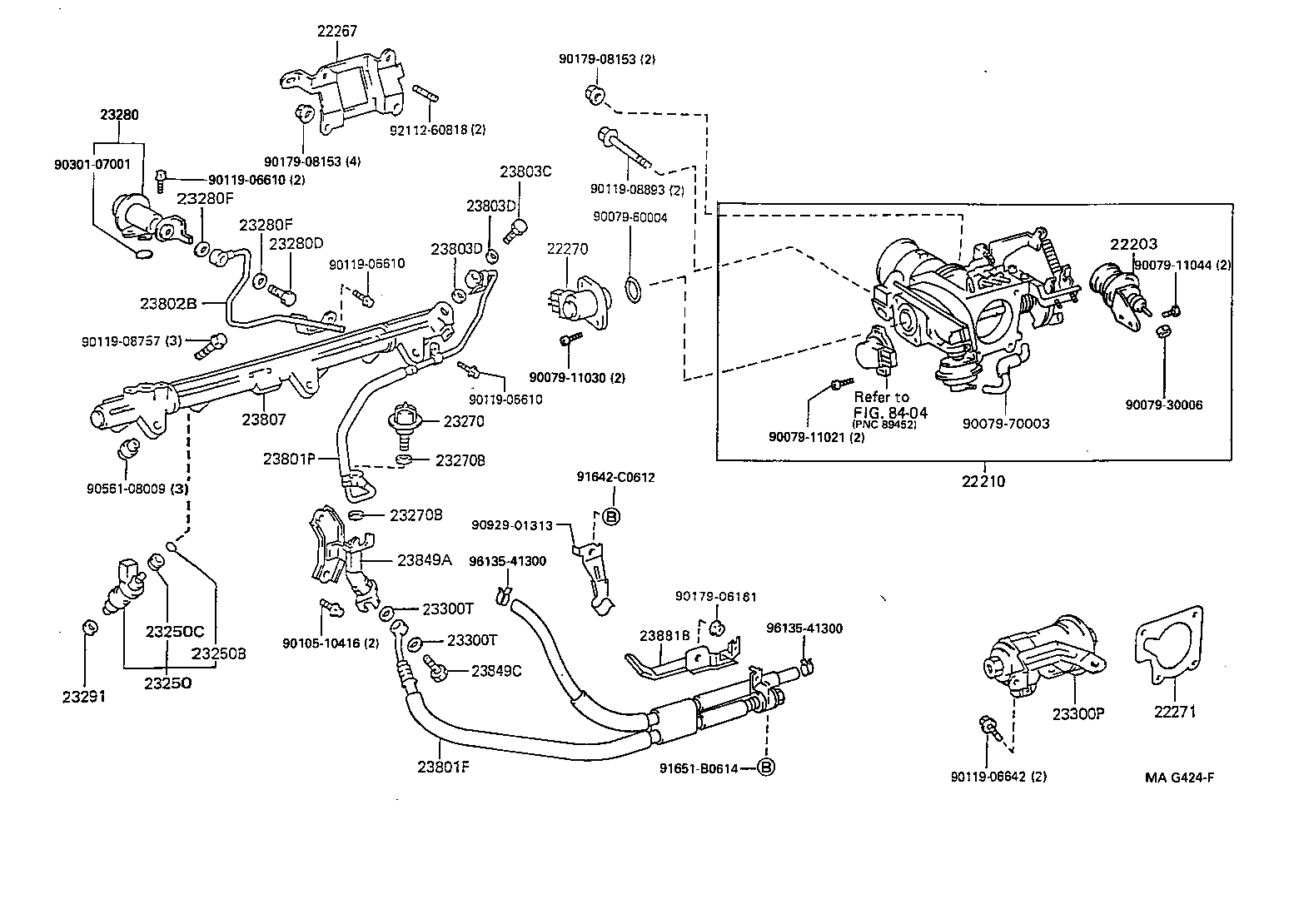

FUEL INJECTION SYSTEM

(9303-9708)

GS300 | FUEL INJECTION SYSTEM 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) 22210 - BODY ASSY, THROTTLE 22267 - BRACKET, THROTTLE BODY 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) 22271 - GASKET, THROTTLE BODY 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250C - GROMMET(FOR FUEL INJECTOR) 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23280 - REGULATOR ASSY, FUEL PRESSURE 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) 23291 - INSULATOR, INJECTOR VIBRATION 23300P - FILTER, FUEL(FOR EFI) 23300T - GASKET(FOR FUEL FILTER) 23300T - GASKET(FOR FUEL FILTER) 23801F - HOSE, FUEL, NO.1 23801P - PIPE SUB-ASSY, FUEL, NO.1 23802B - PIPE SUB-ASSY, FUEL, NO.2 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23849A - SUPPORT, FUEL PIPE 23849C - BOLT, UNION(FOR FUEL PIPE SUPPORT) 23881B - BRACKET, FUEL HOSE ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
