LEXUS GS300 JZS147R-BEPQFW / ELECTRICAL / HEATING AIR CONDITIONING CONTROL AIR DUCT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING CONTROL AIR DUCT

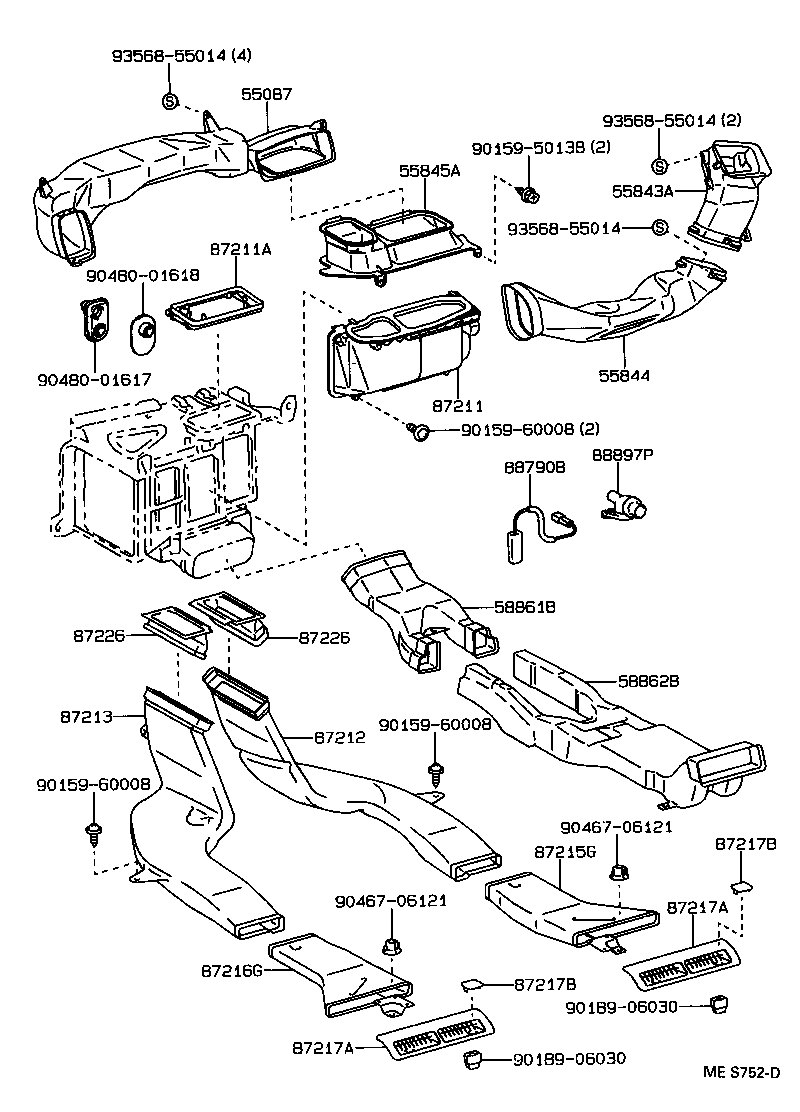

FRONT DUCT ILLUST NO. 1 OF 3(9308-9708)RHD

 GS300 |  HEATING AIR CONDITIONING CONTROL AIR DUCT 55087 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.4 55843A - DUCT, HEATER TO REGISTER, NO.1 55844 - DUCT, HEATER TO REGISTER, NO.2 55845A - DUCT, HEATER TO REGISTER, NO.3 58861B - DUCT, CONSOLE BOX, NO.1 58862B - DUCT, CONSOLE BOX, NO.2 87211 - DUCT, AIR, NO.1 87211A - DUCT, AIR, NO.2 87212 - DUCT, AIR, REAR NO.1 87213 - DUCT, AIR, REAR NO.2 87215G - GUIDE, AIR DUCT, REAR RH 87216G - GUIDE, AIR DUCT, REAR LH 87217A - DUCT, AIR, REAR NO.6 87217A - DUCT, AIR, REAR NO.6 87217B - PLUG, AIR DUCT 87217B - PLUG, AIR DUCT 87226 - ADAPTER, AIR DUCT 87226 - ADAPTER, AIR DUCT 88790B - THERMISTOR ASSY 88897P - ASPIRATOR  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
