LEXUS GS300 JZS147R-BEPQFW / BODY / ROOF PANEL BACK WINDOW GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

ROOF PANEL BACK WINDOW GLASS

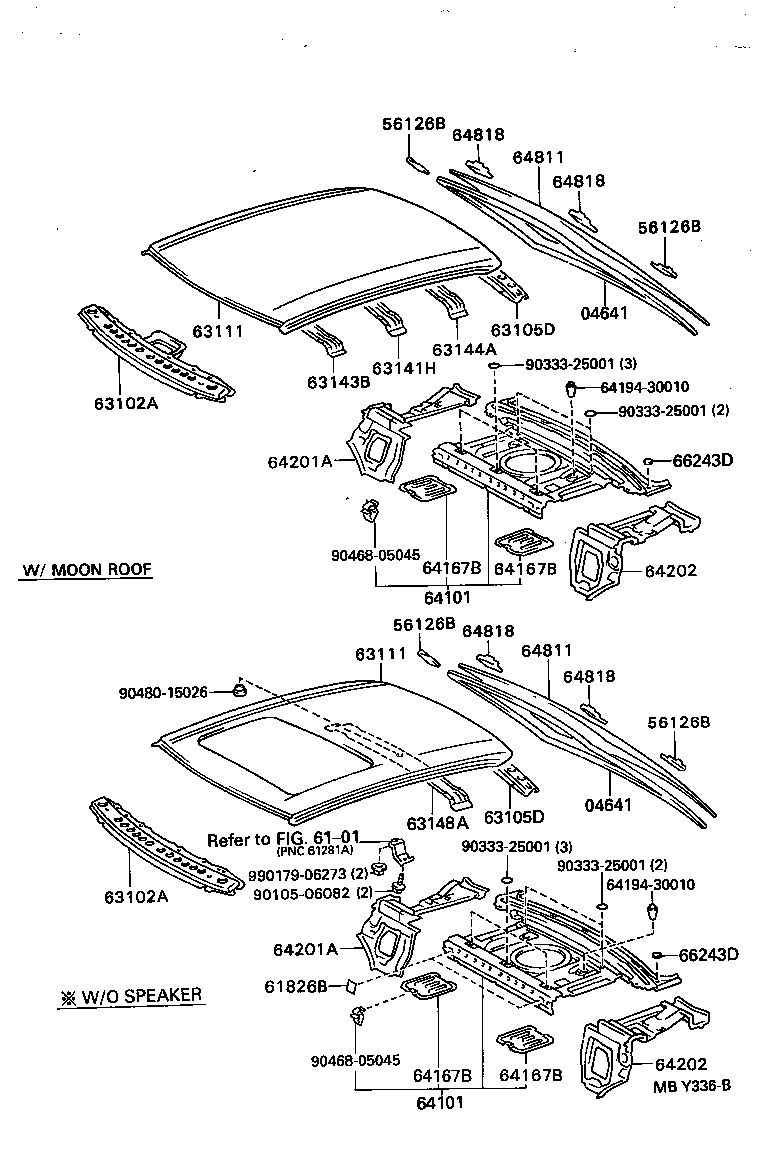

ILLUST NO. 1 OF 2(9303- )

 GS300 |  ROOF PANEL BACK WINDOW GLASS 04641 - DAM KIT, BACK WINDOW GLASS 04641 - DAM KIT, BACK WINDOW GLASS 56126B - SPACER, WINDSHIELD GLASS, NO.2 56126B - SPACER, WINDSHIELD GLASS, NO.2 56126B - SPACER, WINDSHIELD GLASS, NO.2 56126B - SPACER, WINDSHIELD GLASS, NO.2 ** Refer Fig 61826B - PLATE, NOISE CONTROL, NO.3 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER 63111 - PANEL, ROOF 63111 - PANEL, ROOF 63141H - REINFORCEMENT, ROOF PANEL, CENTER 63143B - REINFORCEMENT, ROOF PANEL, NO.3 63144A - REINFORCEMENT, ROOF PANEL, NO.4 63148A - REINFORCEMENT, ROOF PANEL, NO.7 64101 - PANEL SUB-ASSY, UPPER BACK 64101 - PANEL SUB-ASSY, UPPER BACK 64167B - COVER, UPPER BACK PANEL HOLE, NO.3 64167B - COVER, UPPER BACK PANEL HOLE, NO.3 64167B - COVER, UPPER BACK PANEL HOLE, NO.3 64167B - COVER, UPPER BACK PANEL HOLE, NO.3  ** Std Part  ** Std Part 64201A - EXTENSION SUB-ASSY, PACKAGE TRAY, RH 64201A - EXTENSION SUB-ASSY, PACKAGE TRAY, RH 64202 - EXTENSION SUB-ASSY, PACKAGE TRAY, LH 64202 - EXTENSION SUB-ASSY, PACKAGE TRAY, LH 64811 - GLASS, BACK WINDOW 64811 - GLASS, BACK WINDOW 64818 - SPACER, BACK WINDOW GLASS 64818 - SPACER, BACK WINDOW GLASS 64818 - SPACER, BACK WINDOW GLASS 64818 - SPACER, BACK WINDOW GLASS 66243D - PROTECTOR, REAR BODY, NO.1 66243D - PROTECTOR, REAR BODY, NO.1  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
