LEXUS GS300 JZS147R-BEPQFW / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

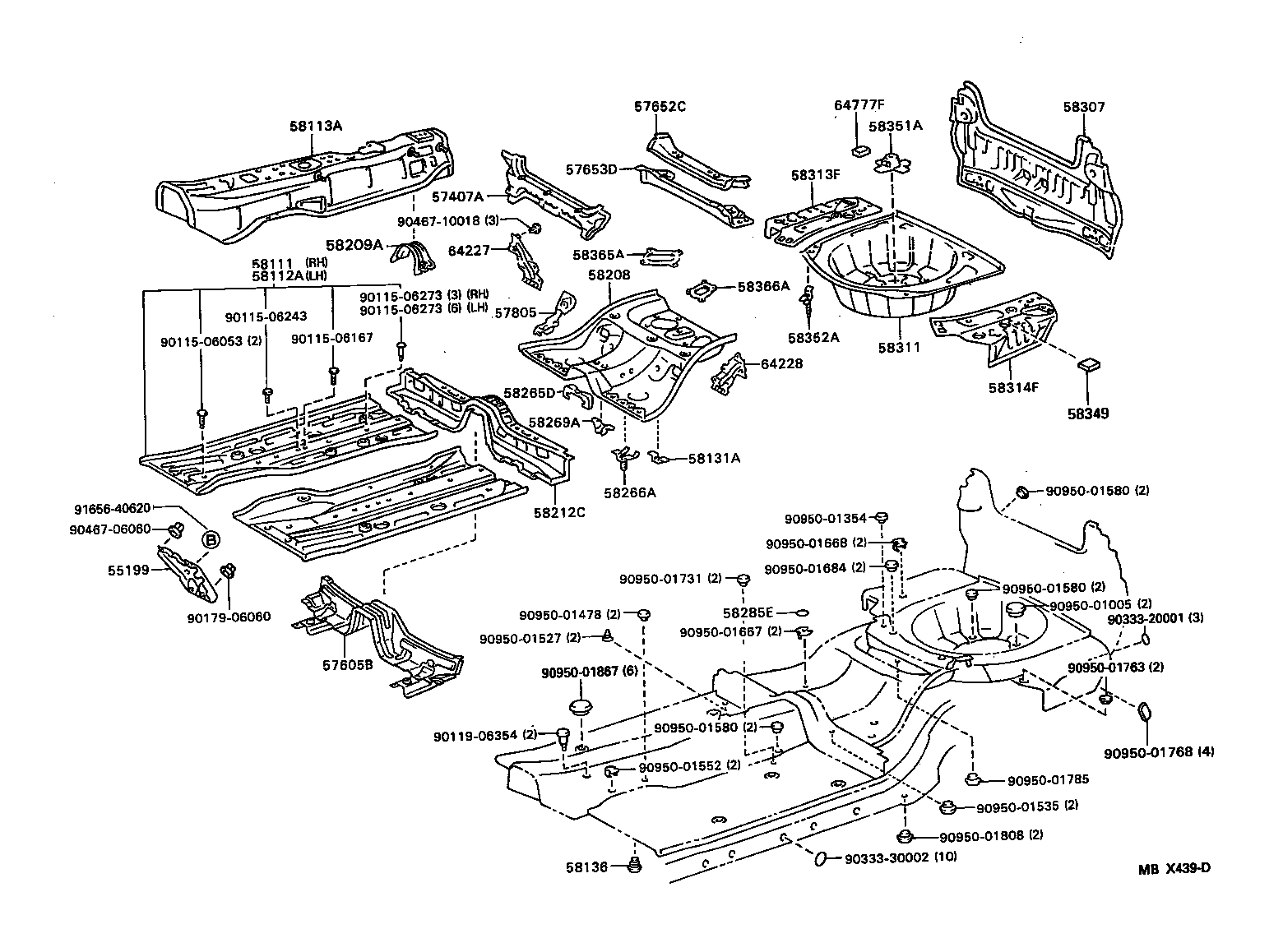

FLOOR PAN LOWER BACK PANEL

(9303- )

 GS300 |  FLOOR PAN LOWER BACK PANEL 55199 - COVER, DASH PANEL COMPUTER 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 57652C - MEMBER, REAR FLOOR CROSS, NO.1 57653D - MEMBER, REAR FLOOR CROSS, NO.2 57805 - REINFORCEMENT SUB-ASSY, BELT ANCHOR 58111 - PAN, FRONT FLOOR 58112A - PANEL, FRONT FLOOR, LH 58113A - PANEL, FRONT FLOOR, CENTER 58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 58136 - COVER, FRONT FLOOR HOLE 58208 - PAN, CENTER FLOOR 58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT 58212C - PAN, CENTER FLOOR, FRONT 58265D - BRACKET, PARKING BRAKE CABLE GUIDE, NO.2 58266A - BRACKET, FUEL TUBE CLAMP 58269A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.3 58285E - COVER, CENTER FLOOR HOLE 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH 58349 - CUSHION, REAR FLOOR SIDE 58351A - BRACKET, SPARE WHEEL CARRIER 58352A - BRACKET, REAR FLOOR STAY 58365A - BRACKET, FUEL TANK SUPPORT, RH 58366A - BRACKET, FUEL TANK SUPPORT, LH 64227 - EXTENSION, CENTER FLOOR TO BRACE 64228 - EXTENSION, CENTER FLOOR TO BRACE, NO.2 64777F - CUSHION, SPARE WHEEL  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
