LEXUS GS300 JZS147L-BEPQFW / BODY / REAR BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

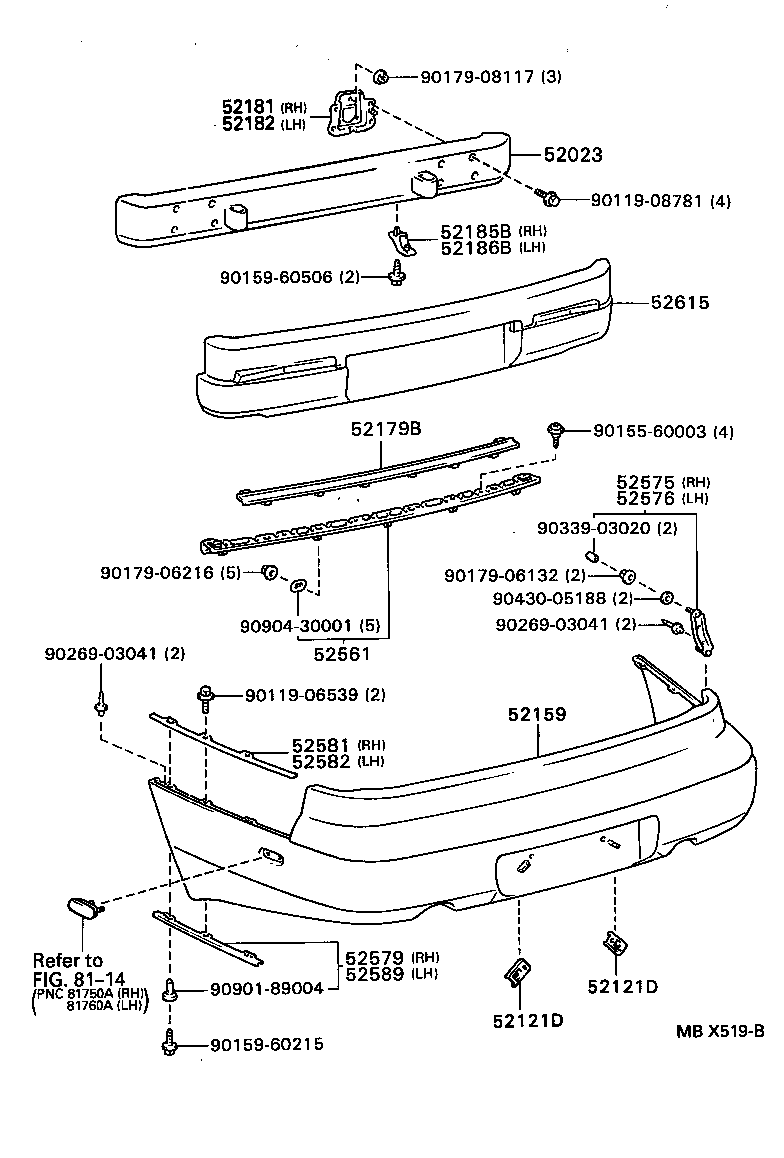

REAR BUMPER BUMPER STAY

(9303- )

 GS300 |  REAR BUMPER BUMPER STAY 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER 52121D - BRACKET, REAR LICENSE PLATE MOUNTING 52121D - BRACKET, REAR LICENSE PLATE MOUNTING 52159 - COVER, REAR BUMPER 52179B - PLATE, REAR BUMPER BAR 52181 - ARM, REAR BUMPER, RH 52182 - ARM, REAR BUMPER, LH 52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH 52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH 52561 - RETAINER, REAR BUMPER, UPPER CENTER 52575 - RETAINER, REAR BUMPER SIDE, RH 52576 - RETAINER, REAR BUMPER SIDE, LH 52579 - RETAINER, REAR BUMPER SIDE, NO.3 52581 - PROTECTOR, REAR BUMPER, RH 52582 - PROTECTOR, REAR BUMPER, LH 52589 - RETAINER, REAR BUMPER END, NO.2 52615 - ABSORBER, REAR BUMPER ENERGY ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
