LEXUS GS300 JZS147L-BEPQFV / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

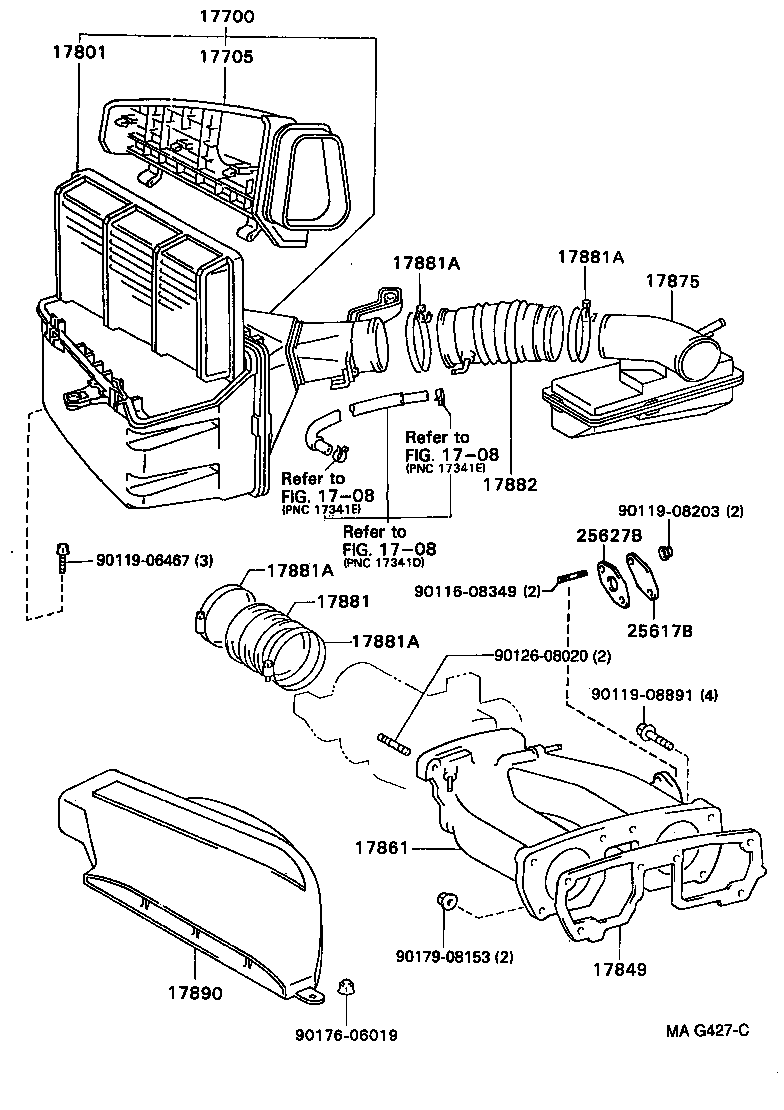

AIR CLEANER

(9303-9708)2JZGE..GCC

 GS300 |  AIR CLEANER ** Refer Fig ** Refer Fig ** Refer Fig 17700 - CLEANER ASSY, AIR 17705 - CAP SUB-ASSY, AIR CLEANER 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17849 - GASKET, INTAKE AIR CONNECTOR 17861 - CONNECTOR, INTAKE AIR 17875 - PIPE, INTAKE AIR CONNECTOR 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882 - HOSE, AIR CLEANER, NO.2 17890 - HOSE ASSY, AIR CLEANER, NO.2 25617B - PLATE, EGR HOLE COVER 25627B - GASKET, EGR VALVE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
