LEXUS GS300 JZS147L-BEPQFV / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

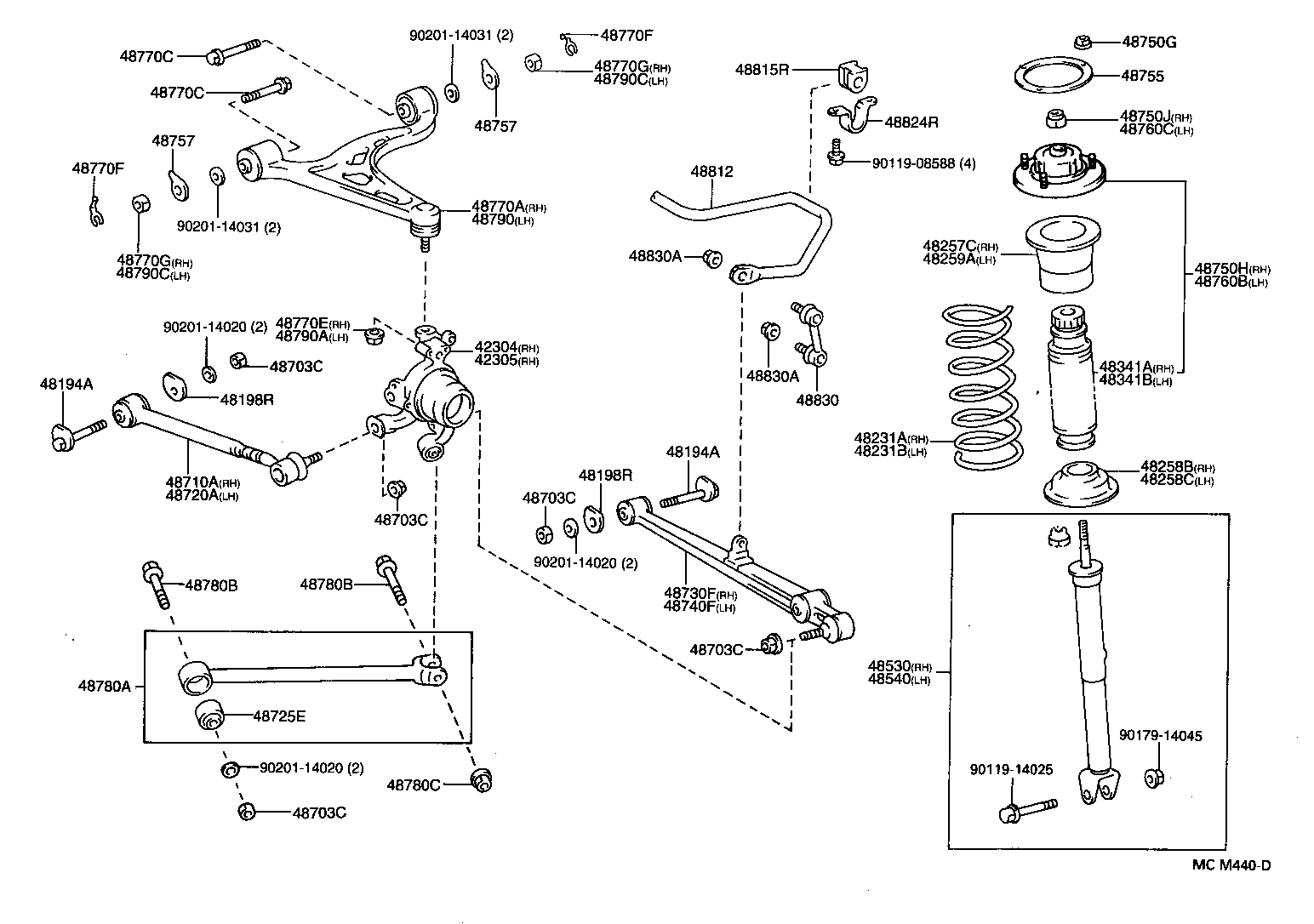

REAR SPRING SHOCK ABSORBER

(9303-9508)

GS300 | REAR SPRING SHOCK ABSORBER 42304 - CARRIER SUB-ASSY, REAR AXLE, RH 42305 - CARRIER SUB-ASSY, REAR AXLE, LH 48194A - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1 48194A - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1 48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 48231A - SPRING, COIL, REAR RH 48231B - SPRING, COIL, REAR LH 48257C - INSULATOR, REAR COIL SPRING, UPPER RH 48258B - INSULATOR, REAR COIL SPRING, LOWER RH 48258C - INSULATOR, REAR COIL SPRING, LOWER LH 48259A - INSULATOR, REAR COIL SPRING, UPPER LH 48341A - BUMPER, REAR SPRING, NO.1 RH 48341B - BUMPER, REAR SPRING, NO.1 LH 48530 - ABSORBER ASSY, SHOCK, REAR RH 48540 - ABSORBER ASSY, SHOCK, REAR LH 48703C - NUT(FOR REAR SUSPENSION ARM) 48703C - NUT(FOR REAR SUSPENSION ARM) 48703C - NUT(FOR REAR SUSPENSION ARM) 48703C - NUT(FOR REAR SUSPENSION ARM) 48703C - NUT(FOR REAR SUSPENSION ARM) 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH 48725E - BUSH, REAR STRUT ROD 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH 48750G - NUT(FOR REAR SUSPENSION SUPPORT) 48750H - SUPPORT ASSY, REAR SUSPENSION, RH 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) 48755 - SUPPORT, REAR SUSPENSION 48757 - ATTACHMENT, REAR SUSPENSION ARM 48757 - ATTACHMENT, REAR SUSPENSION ARM 48760B - SUPPORT ASSY REAR SUSPENSION, LH 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) 48770A - ARM ASSY, UPPER CONTROL, REAR RH 48770C - BOLT(FOR REAR UPPER CONTROL ARM) 48770C - BOLT(FOR REAR UPPER CONTROL ARM) 48770E - NUT, NO.1(FOR REAR UPPER CONTROL ARM RH) 48770F - RING, E(FOR REAR UPPER CONTROL ARM) 48770F - RING, E(FOR REAR UPPER CONTROL ARM) 48770G - NUT, NO.2(FOR REAR UPPER CONTROL ARM RH) 48770G - NUT, NO.2(FOR REAR UPPER CONTROL ARM RH) 48780A - ROD ASSY, STRUT, REAR 48780B - BOLT(FOR STRUT ROD) 48780B - BOLT(FOR STRUT ROD) 48780C - NUT(FOR STRUT ROD) 48790 - ARM ASSY, UPPER CONTROL, REAR LH 48790A - NUT, NO.1(FOR REAR UPPER CONTROL ARM LH) 48790C - NUT, NO.2(FOR REAR UPPER CONTROL ARM LH) 48790C - NUT, NO.2(FOR REAR UPPER CONTROL ARM LH) 48812 - BAR, STABILIZER, REAR 48815R - BUSH, STABILIZER(FOR REAR) 48824R - BRACKET, STABILIZER(FOR REAR) 48830 - LINK ASSY, REAR STABILIZER 48830A - NUT(FOR REAR STABILIZER LINK) 48830A - NUT(FOR REAR STABILIZER LINK) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
