LEXUS GS300 JZS147L-BEPQFV / POWERTRAIN-CHASSIS / PLANETARY GEAR REVERSE PISTON COUNTER GEAR ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

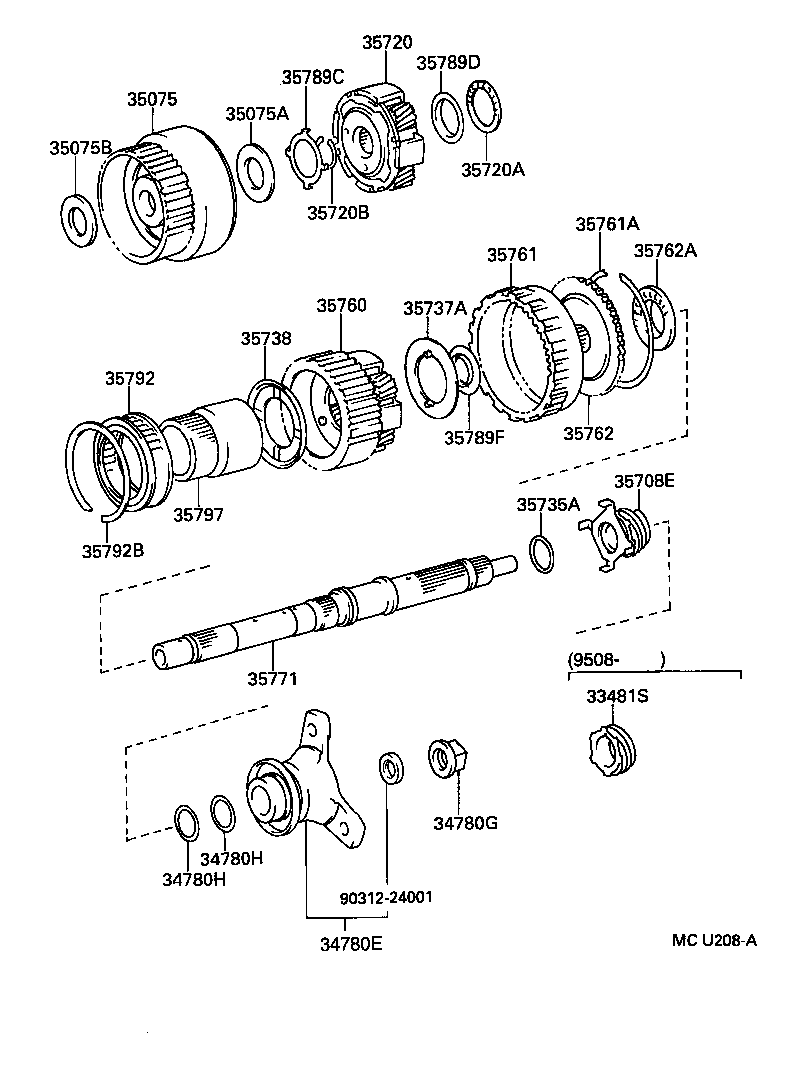

PLANETARY GEAR REVERSE PISTON COUNTER GEAR ATM

A343E (9303- )

GS300 | PLANETARY GEAR REVERSE PISTON COUNTER GEAR ATM 33481S - GEAR, SPEEDOMETER DRIVE (ATM) 34780E - YOKE ASSY, FLANGE (FOR AUTOMATIC TRANSMISSION) 34780G - NUT (FOR ATM FRANGE YOKE) 34780H - WASHER, PLATE (FOR ATM FLANGE YOKE) 34780H - WASHER, PLATE (FOR ATM FLANGE YOKE) 35075 - GEAR SUB-ASSY, FRONT PLANETARY RING 35075A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY RING) 35075B - RACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR FR) 35708E - GEAR SUB-ASSY, SPEEDOMETER DRIVE 35720 - GEAR ASSY, FRONT PLANETARY 35720A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR) 35720B - RING, SHAFT SNAP (FOR FRONT PLANETARY GEAR) 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 35760 - GEAR ASSY, REAR PLANETARY 35761 - GEAR, REAR PLANETARY RING 35761A - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR) 35762 - FLANGE, REAR PLANETARY RING GEAR 35762A - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE) 35771 - SHAFT, OUTPUT 35789C - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT) 35789D - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR) 35789F - RACE, THRUST BEARING (FOR REAR PLANETARY FLANGE) 35792 - CLUTCH, 1 WAY, NO.2 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) 35797 - RACE, 1 WAY CLUTCH INNER ** Std Part
